Horizontal Cartoner High Speed Opening And Sealing Machine BMZX670E
| Place of Origin | CH |
|---|---|
| Brand Name | BM |
| Certification | CE |
| Model Number | BMZX670E |
| Minimum Order Quantity | 1 |
| Price | US$30000.00 - 60,000.00 |
| Packaging Details | PE Bag / Bubble Wrap/Plastic Blister /Molded Foam/ Corrugated Box/ Wooden Crate/Pallet |
| Delivery Time | 20-30 working days |
| Payment Terms | T/T |
| Supply Ability | 500 sets / year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Machine Type | Full Servo Full Auto | Product Type | Cartoning Machine |
|---|---|---|---|
| Designed Packing Speed | 5-15 Boxes/minute (depending On Product) | Length（mm） | 270-520mm |
| Width（mm） | 170-400mm | Height | 180-450mm |
| Main Unit Heating Power | 10 KW (including Material Handling Line) | Power Supply Type | 380 V±10%, 50 Hz±5%, Control Voltage: DC 24 V |
| Machine Weight | 4000 Kg (including Material Handling Line) | Dimensions | 9200*6400*1900mm |
| Carton Material | Corrugated Cardboard | Machine Noise | ≤ 75dB(A) |
| Sealing Method | Tape Sealing (hot Melt Adhesive Can Also Be Used Upon Request). | Air Supply | 0.5～0.87MPa |
| Air Consumption | 400 L/minute (Buyer To Provide Air Supply) | ||
| Highlight | horizontal cartoner high speed,high speed horizontal end load cartoner,full auto horizontal cartoner |
||
Product Description

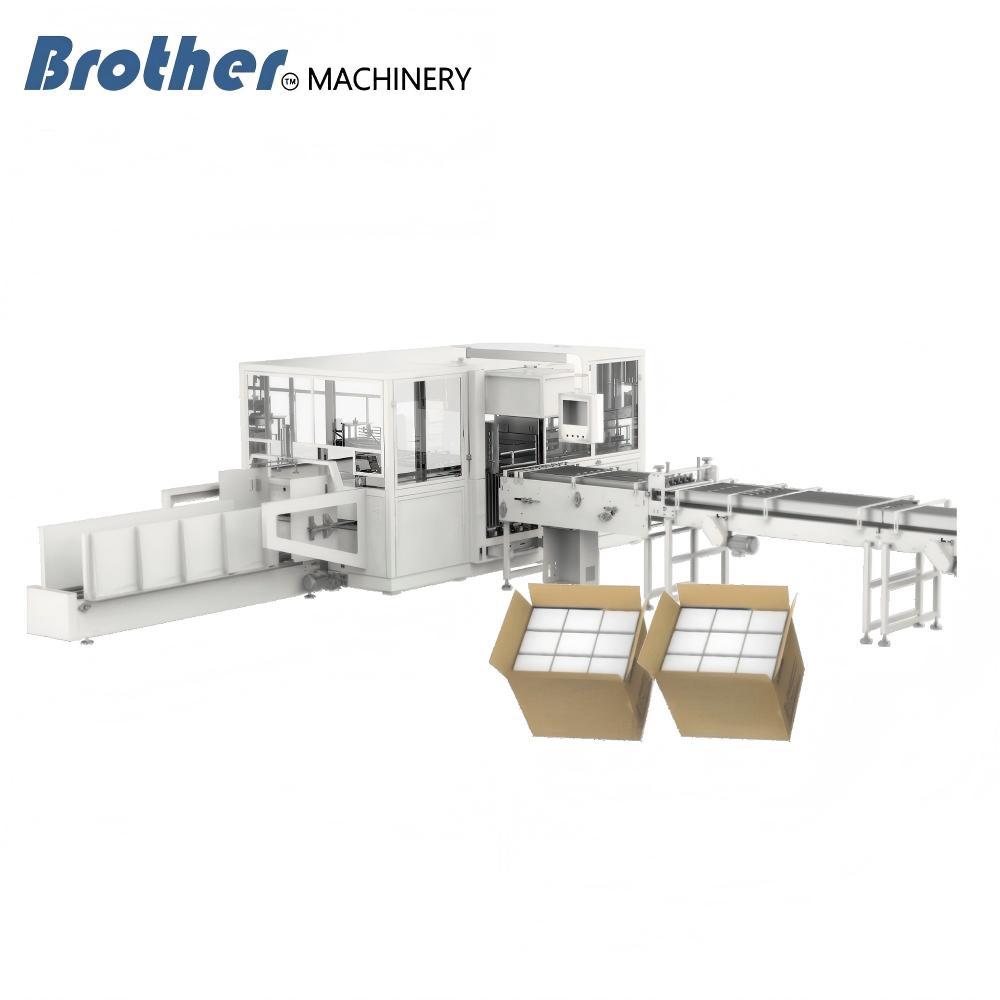

BMZX670E High Speed Horizontal Opening And Sealing Machine
Advanced horizontal cartoner designed for high-speed packaging of various pack configurations including 18, 20, 24, 27 packs per box and more.
Machine System Overview
Complete packaging system comprising four integrated components:
- Material handling system for product feeding
- Box opening system for carton preparation
- Box packing system for product insertion
- Box sealing system for final closure
Key Features & Capabilities
- Versatile material handling system accommodates various facial tissue sizes
- High-capacity storage compartments for pre-made tissues
- Standard configuration includes three storage compartments (expandable per customer requirements)
- Continuous operation capability without machine interruption
- User-friendly touchscreen HMI for equipment monitoring and fault indication
- Compact, space-saving design with energy-efficient operation
Customization & Specialization
Small-Batch Customization Expertise
MOQ starts from 1 unit with flexible adaptation to various product specifications including household paper and food packaging bags. Modular design enables quick adjustments to packaging speed, size, and materials.
Fast Delivery & Responsive Support
Standardized components with localized supply chain ensure 15-35 day lead time. 24/7 technical support with on-site emergency service within 48 hours (priority for Asia, Africa, and Latin America).
Niche Market Specialization
20 years of expertise in household paper packaging, optimized for small-to-medium capacity. Continuous upgrades include auto-alignment systems and low-noise design (<65dB).
Cost-Optimized Solutions
30-40% more cost-effective than international brands with comparable performance, reducing ROI period to 6-12 months. Energy-efficient designs with servo motors reducing power consumption by 20%+.
Quality Control & Certifications
Rigorous quality control from raw material inspection to 72-hour continuous load testing. International certifications include CE and ISO9001, compliant with EU, Middle Eastern, and Southeast Asian standards.
