BMZX660A Cartoning Machine Flexible Robotic Case Packer 5-25 Boxes/Minute
| Place of Origin | CH |
|---|---|
| Brand Name | BM |
| Certification | CE |
| Model Number | BMZX660A |
| Minimum Order Quantity | 1 |
| Price | US$30000.00 - 60,000.00 |
| Packaging Details | PE Bag / Bubble Wrap/Plastic Blister /Molded Foam/ Corrugated Box/ Wooden Crate/Pallet |
| Delivery Time | 20-30 working days |
| Payment Terms | T/T |
| Supply Ability | 500 sets / year |
Product Details
| Machine Type | Full Servo Full Auto | Product Type | Cartoning Machine |
|---|---|---|---|
| Length（mm） | 270-550mm (maximum 450mm When Rotation Is Required) | Width（mm） | 150-400mm (L+W<900mm) |
| Height | 120-400mm (maximum 200mm For Single Layer, 580mm X 48mm) | Machine Noise | ≤ 75dB(A) |
| Main Unit Heating Power | 13.5Kw | Power Supply Type | 380V±10%, 50Hz±5%, Control Voltage Is DC 24V |
| Machine Weight | 2000KG | Dimensions | 6900*2200*2800mm(including Material Handling Line, Carton Opening Machine, Carton Sealing Machine) |
| Designed Packing Speed | 5-25 Boxes/minute (depending On Product) | Tape Used | 70mm Width Optional |
| Air Supply | 0.5～0.7Mpa, Air Consumption: 200L/min (purchaser To Provide Air Supply) | ||
| Highlight | cartoning machine flexible,flexible robotic case packer,robotic cartoning machine |
||
Product Description

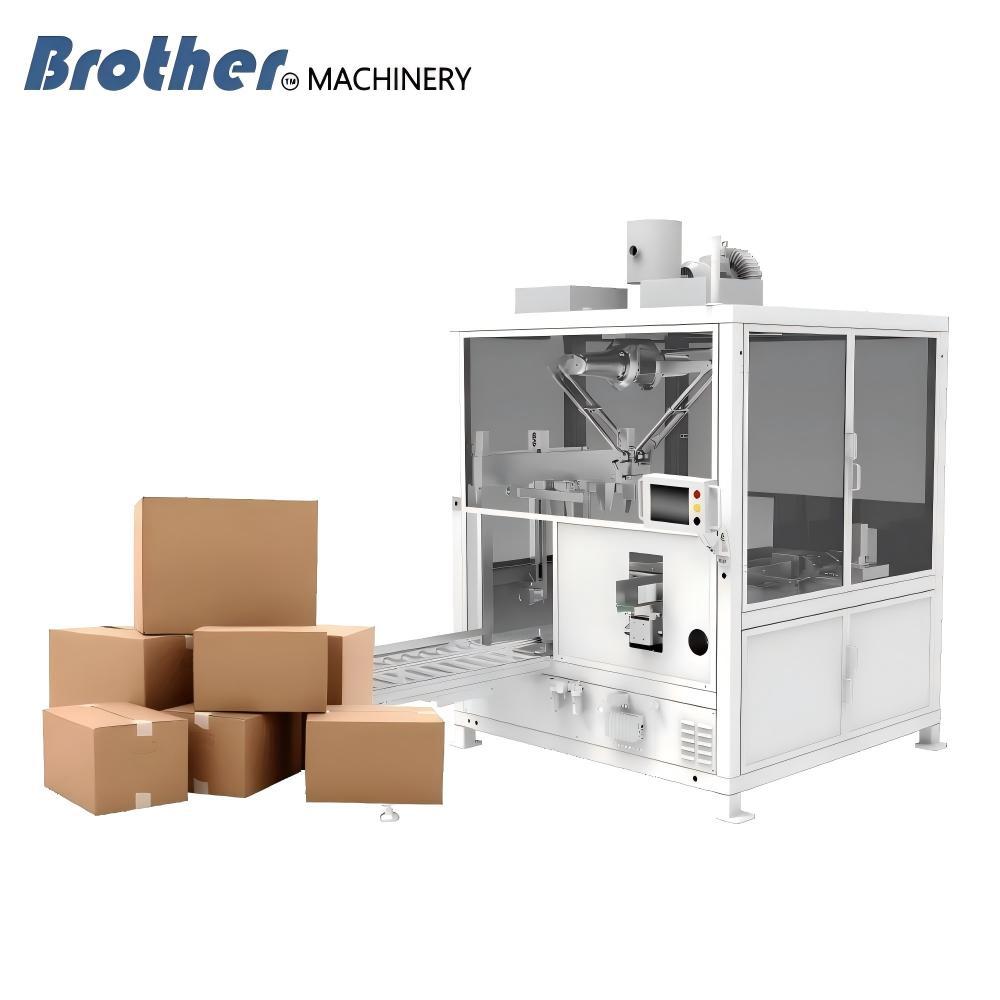

BMZX660A Cartoning Machine Flexible Robotic Case Packer
Production Capacity: 5-25 Boxes per Minute
Machine Features & Benefits
Compact footprint with minimal space requirements and flexible layout options
One-button production changeover for quick and easy adjustments
Stable material handling with physical push mechanism for superior reliability
High efficiency operation requiring only 2-3 gripping actions per cycle
Remote equipment debugging, data monitoring, and system interaction capabilities
Customization & Service Advantages
Small-Batch Customization: MOQ from 1 unit, adaptable to various product specifications including household paper and food packaging bags
Fast Delivery: 15-35 day lead time with 24/7 technical support and 48-hour emergency service
Niche Market Specialization: 20 years expertise in household paper packaging with auto-alignment systems and low-noise design (<65dB)
Cost Optimization: 30-40% more cost-effective than international brands with 6-12 month ROI and 20%+ energy savings
Quality Assurance: Rigorous quality control, 72-hour load testing, CE and ISO9001 certifications
