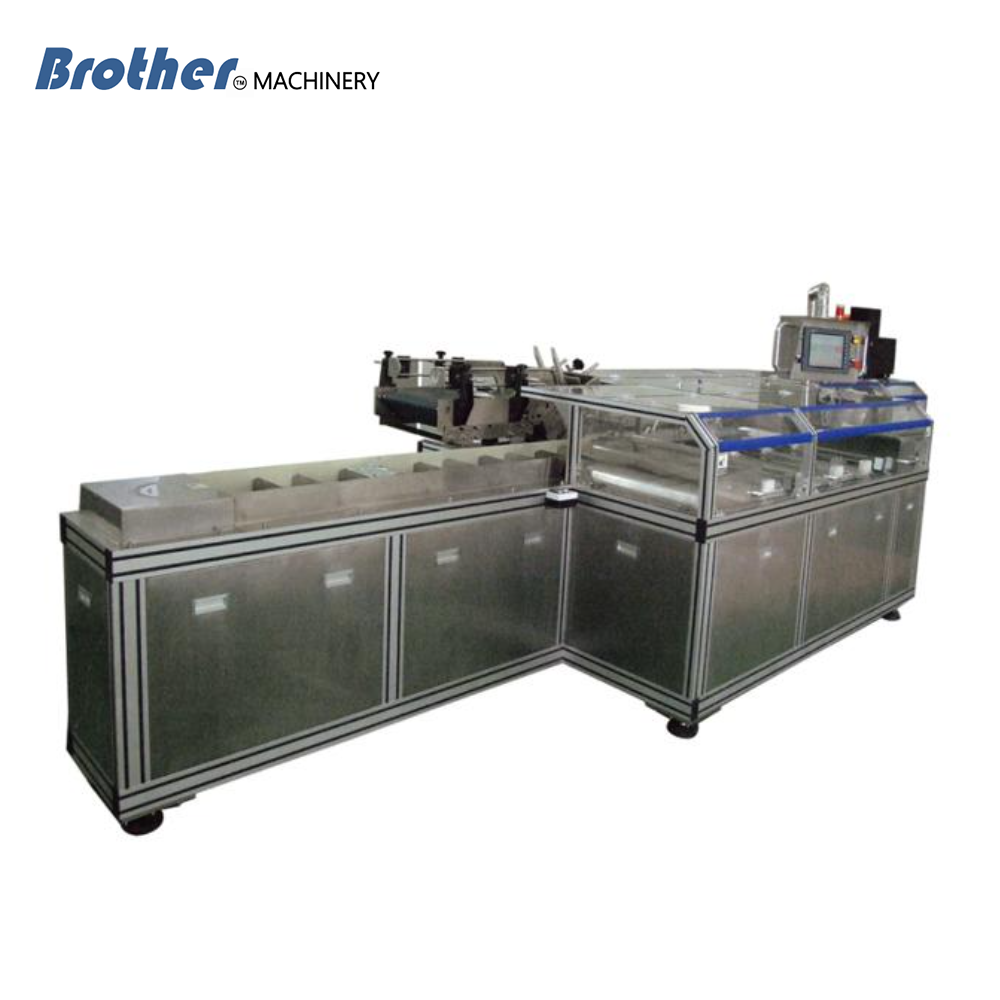

Fully Servo Automatic Cartoning Machine With High Speed And Customizable Packaging Solutions
| Place of Origin | CH |
|---|---|
| Brand Name | BM |
| Certification | CE |
| Model Number | BMKS-HC-D80A |
| Minimum Order Quantity | 1 |
| Price | US$18,000.00 - 35,000.00 |
| Packaging Details | PE Bag / Bubble Wrap/Plastic Blister /Molded Foam/ Corrugated Box/ Wooden Crate/Pallet |
| Delivery Time | 20-30 working days |
| Payment Terms | T/T |
| Supply Ability | 500 sets / year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Machine Type | Full Servo Full Auto | Product Type | Cartoning Machine |
|---|---|---|---|
| Height（mm） | 140-250mm | Width（mm） | 50-180mm |
| Length（mm） | 30-80mm | Packaging Material | White Card 250-350g/m2 Gray Card 300-400g/m2 |
| Gluing Method | Spray Glue (Pneumatic Rubber Lifting(to Be Ordered) | Rated Speed (P/min) | 180-200 Bags/min |

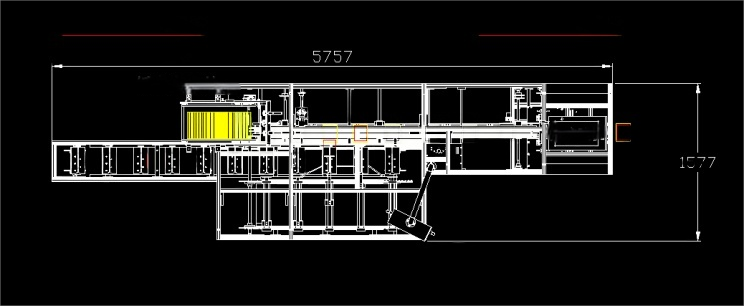

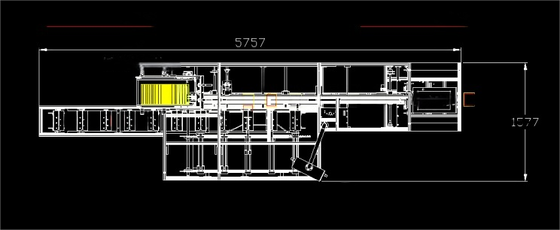

| Air Consumption | 200L/min | Equipment Dimensions (L X W X H) | 6100*1900*800 Mm |
| Power Supply | 380V 50Hz (The Purchaser Is Responsible For Providing The Required External Power Cord) | Servo Motor Total Power | Approximately 5.5kW |
| Hot Melt Glue Power | 2 Kw | Net Weight | 1000kg |
| Compressed Air Pressure (MPa) | 0.6-0.8MPa (The Air Source And External Air Inlet Pipe Required For The Packaging Machine Are Provided By The Purchaser) | Machine Noise | ≤ 70dB |
| Highlight | fully servo automatic cartoning machine,customizable auto cartoning machine,customizable automatic cartoning machine |
||
Product Description
Fully Servo Automatic Cartoning Machine
The BM-XB60A Fully Servo Automatic Cartoning Machine delivers high-speed performance and customizable packaging solutions for various industries.
Machine Overview
The XB-60A is a fully automatic cartoning machine developed based on user-defined packaging requirements. Featuring an aesthetically pleasing design and continuous carton opening system, this equipment automatically processes materials through synchronized mechanisms for feeding, adhesive dispensing, and carton formation.
Key Features
- Closed-loop PLC control system with intuitive touchscreen interface
- Reduces labor requirements and shortens packaging hours
- Improves packaging quality and production efficiency
- Widely used for food and pharmaceutical carton packaging
- Automatic vacuum carton opening and packaging system

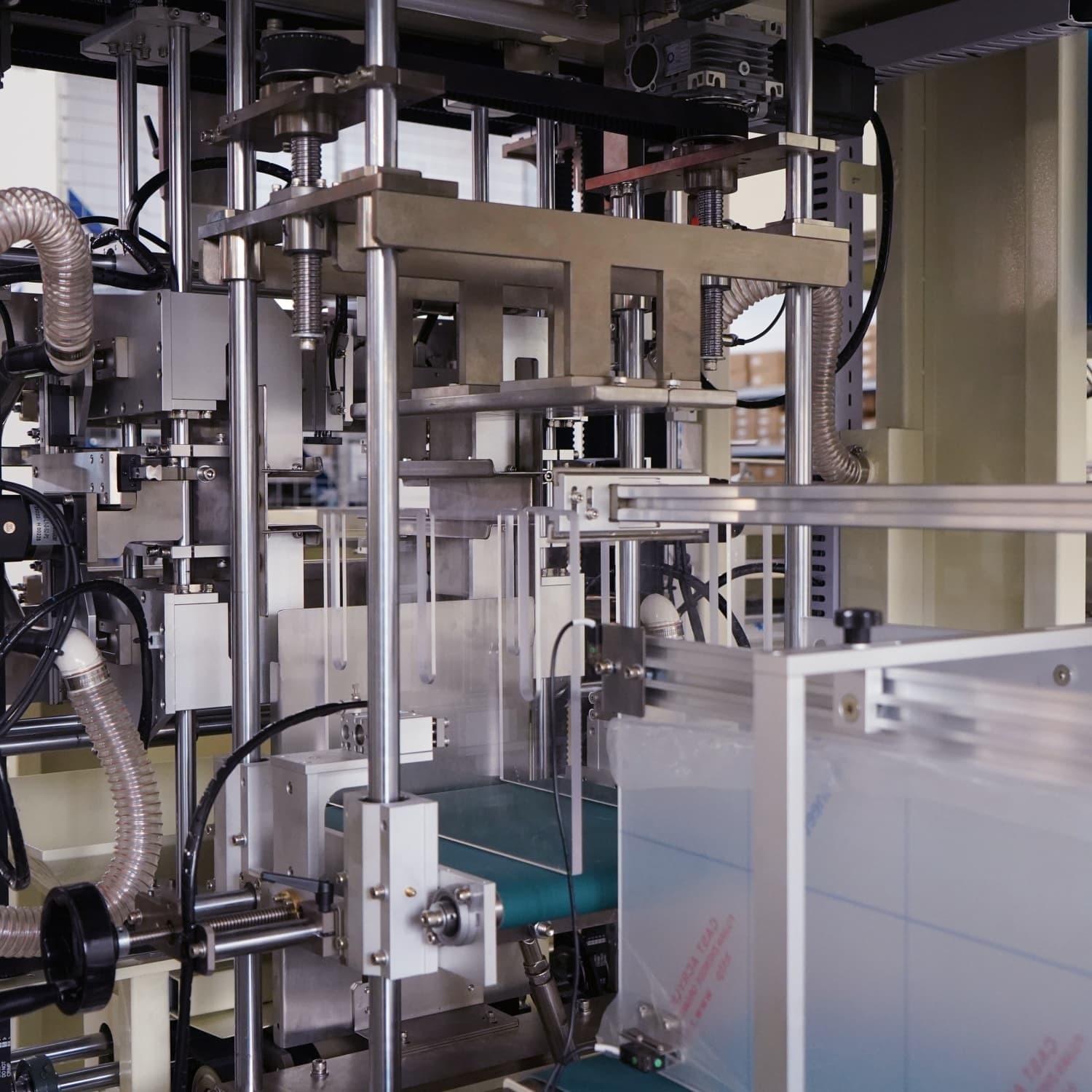

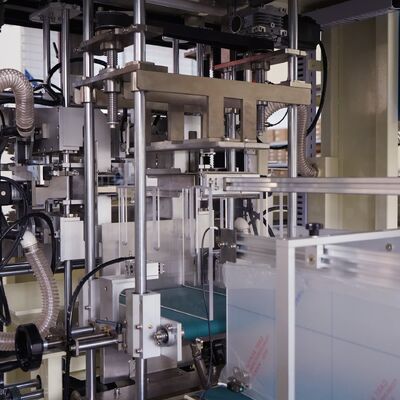

Machine Components
- Carton Forming Unit: Carton holder, vacuum cup, vacuum generator, and convex curved surface mechanism

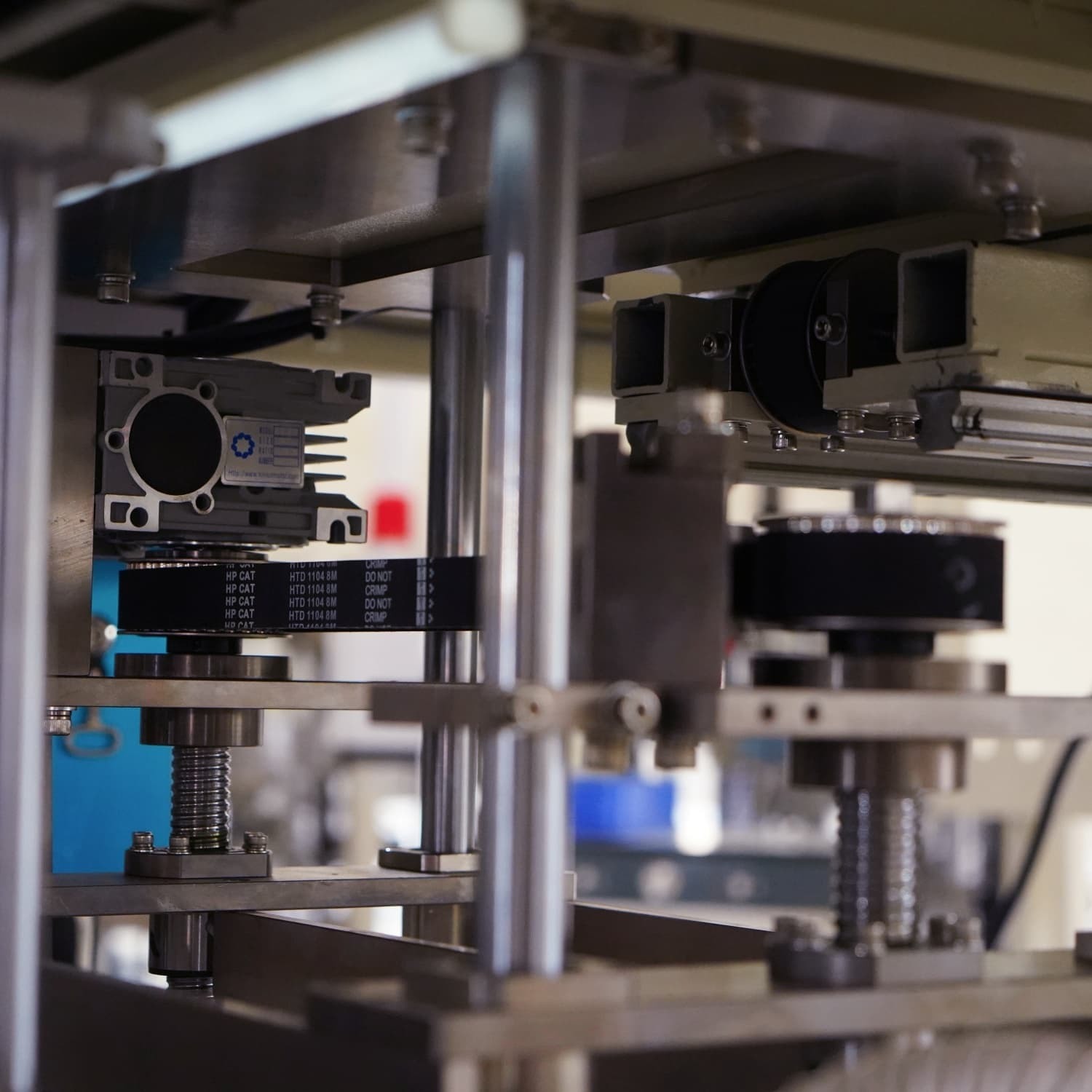

- Carton Drive Assembly: Chain, pusher, active motor, positioning sensor, encoder, and mechanical double-sided inserts
- Mechanical Synchronous Material Pushing: Mechanical synchronizer, pusher rod, access box
- Gluing Assembly: Glue spray head, nozzle, spray gun, hose, glue dispenser
- Pressing Assembly: Nine components including rollers and frame
Operation Process
Cartons are stacked on the support, where vacuum suction cups grip and pull them onto guide rails. As the chain moves forward, support rods fold carton surfaces while mechanical inserts press into place. Materials are automatically pushed into cartons during operation, with hot melt adhesive applied to both sides. The small sides are gradually folded down and pressed together, with adhesive solidifying to deliver finished cartons.
Customization Options
Flexible Production
- Small-batch customization with MOQ starting from 1 unit
- Adaptable to various product specifications including household paper and food packaging
- Modular design for quick adjustments to speed, size, and materials
Fast Delivery & Support
- 15-35 day lead time with standardized components
- 24/7 technical support with 48-hour emergency service
- Priority support for Asia, Africa, and Latin America
Specialized Expertise
- 20 years of experience in household paper packaging
- Optimized for small-to-medium capacity operations
- Continuous upgrades including auto-alignment and low-noise design (<65dB)
Cost-Effective Solutions
- 30-40% more cost-effective than international brands
- Reduced ROI period to 6-12 months
- Energy-efficient servo motors reduce power consumption by 20%+
Quality Assurance
- Rigorous quality control from raw materials to 72-hour testing
- International certifications: CE and ISO9001
- Compliant with EU, Middle Eastern, and Southeast Asian standards
Support and Services
Packing and Shipping
Frequently Asked Questions
Are you manufacturer or trading company?
We are a professional manufacturer based in Xiamen, China, with a strong foundation in mechanical engineering and precision manufacturing. Our founder brings 30 years of hands-on experience in mechanical technology.
How do I choose the right filling machine for my business?
Please provide: 1) Product packaging type, 2) Filling material, 3) Filling capacity, 4) Industry, 5) Filling speed, and 6) Budget. We will recommend the optimal filling machine for your requirements.
What product can your packing machine pack?
Our packaging machines handle powders, granules, liquids, and irregular products.
How far is your factory from the airport?
Our factory is 30 minutes from Xiamen Gaoqi International Airport. We provide pick-up service for visiting clients.
How about the after service and guarantee period?
12-month guarantee from machine arrival. Our professional team provides lifetime support to ensure optimal machine performance.
If I place an order now, how long until delivery?
Delivery time depends on order size and machine specifications. Our location in the industrial belt enables rapid customization and modification, ensuring timely delivery.
