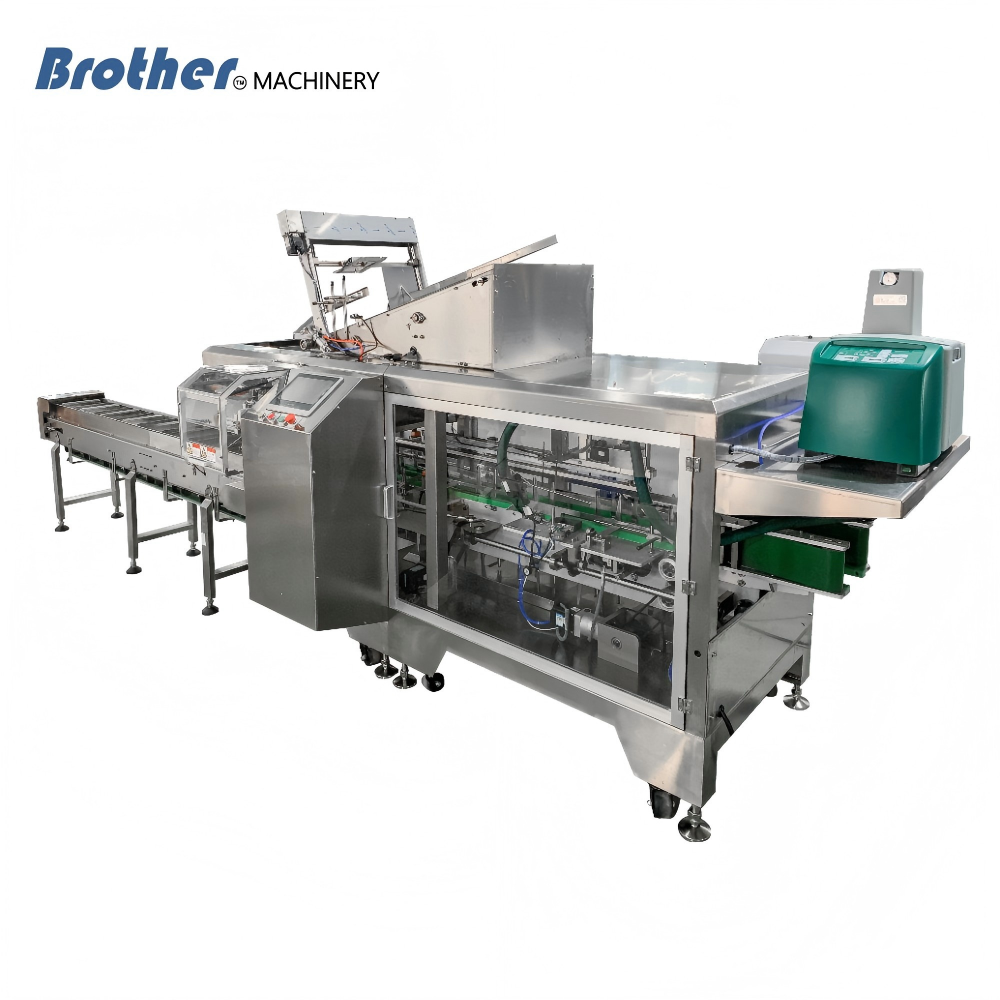

Fully Automatic Horizontal Cartoning Machine 45-80 bags/min BMZH-300
| Place of Origin | CH |
|---|---|
| Brand Name | BM |
| Certification | CE |
| Model Number | BMZH-300 |
| Minimum Order Quantity | 1 |
| Price | US$30,000.00 - 70,000.00 |
| Packaging Details | PE Bag / Bubble Wrap/Plastic Blister /Molded Foam/ Corrugated Box/ Wooden Crate/Pallet |
| Delivery Time | 20-30 working days |
| Payment Terms | T/T |
| Supply Ability | 500 sets / year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Machine Type | Full Servo Full Auto | Product Type | Cartoning Machine |
|---|---|---|---|
| Length（mm） | 150-300 Mm | Width（mm） | 120-260 Mm |
| Height（mm） | 50-100 Mm | Packaging Material | 250-350g/m2 |
| Gluing Method | Spray Glue / Pneumatic Rubber Lifting(to Be Ordered) | Rated Speed (P/min) | 45-80 Bags/min |
| Configuration | 8 Servos +2 Ordinary Speed Regulating Motors/ Appearance Frosted Silver Carbon Steel | Gas Consumption | 150L/min |
| Power Supply | (The Purchaser Is Responsible For Providing The Required External Power Cord):3-phase 380V 50Hz （3+N+P） | Equipment Dimensions (L X W X H) | 4257×160×1823mm |
| Servo Motor Power | Approximately 4.15 KW | Net Weight | 950kg |
| Machine Noise | ≤ 70dB | Total Power (Hot Melt Glue Power Included) | 8.75 Kw |
| Highlight | 80 bags/min automatic cartoning machine,80 bags/min horizontal cartoning machine,380v automatic cartoning machine |
||
Product Description
BMZH-300 Fully Automatic Horizontal Cartoning Machine For Food, Daily Chemicals, Toys, And Cosmetics.for packaging bottled and bagged products such as agricultural chemicals, daily chemical products, medical supplies, hardware products, and confectionery.
- This machine is primarily suitable for automatic cartoning of products in industries such as food, daily chemicals, toys, and cosmetics.
- It automatically completes a series of steps, including feeding, opening, inserting, and gluing and sealing. It delivers a high yield rate of finished products and beautiful seals, significantly improving efficiency and reducing labor costs.
- The entire machine utilizes 9 servo motors with independent control, feed detection, and gluing detection.
- The machine's sheet metal construction offers a sleek, aesthetically pleasing design and ease of operation.
- It utilizes a PLC controller for stable and reliable operation.
- The touchscreen displays real-time operating data, automatically memorizes recipes, and allows for easy switching between product storage options.
- It is compatible with a variety of paper box sizes and offers convenient adjustments. Optional auxiliary functions include gluing, coding, and stamping.
- The independent servo motor rotates the carton opener, ensuring stable opening and a high success rate. Multiple safety features and self-diagnostic functionality provide clear fault indication.
CUSTOMIZATION
- Expert in Small-Batch Customization - MOQ starts from 1 unit, flexibly adaptable to various product specifications (household paper, food packaging bags, etc.). Modular design enables quick adjustments to packaging speed, size, and materials.
- Fast Delivery & Agile Response - Standardized components with localized supply chain ensure 15-35-day lead time. 24/7 technical support with on-site emergency service within 48 hours (priority for Asia, Africa, and Latin America).
- Specialization in Niche Markets - 20 years of expertise in household paper packaging, optimized for small-to-medium capacity. Continuous upgrades include auto-alignment systems and low-noise design (<65dB).
- Cost-Optimized Solutions - 30-40% more cost-effective than international brands with comparable performance, reducing ROI period to 6-12 months. Energy-efficient designs (servo motors reduce power consumption by 20%+).
- Quality Control & Certifications - Rigorous quality control from raw material inspection to 72-hour continuous load testing. International certifications include CE and ISO9001, compliant with EU, Middle Eastern, and Southeast Asian standards.
