High speed Robotic Cartoning Machine For Packing Solutions Vertical Robotic Packing
| Place of Origin | CH |
|---|---|
| Brand Name | BM |
| Certification | CE |
| Model Number | BMZX660C |
| Minimum Order Quantity | 1 |
| Price | US$30000.00 - 60,000.00 |
| Packaging Details | PE Bag / Bubble Wrap/Plastic Blister /Molded Foam/ Corrugated Box/ Wooden Crate/Pallet |
| Delivery Time | 20-30 working days |
| Payment Terms | T/T |
| Supply Ability | 500 sets / year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Machine Type | Full Servo Full Auto | Product Type | Cartoning Machine |
|---|---|---|---|
| Designed Packing Speed | 5-12 Boxes/minute (depending On Product) | Length（mm） | 270-550mm |
| Width（mm） | 180-380mm | Height | 180-400mm |
| Main Unit Heating Power | 10 KW (including Material Handling Line) | Power Supply Type | 380 V±10%, 50 Hz±5%, Control Voltage: DC 24 V |
| Machine Weight | 2000KG | Dimensions | 5900*1850*2250mm |
| Air Supply | 0.6～0.8 MPa | Air Consumption | 200 L/minute (buyer To Provide Air Supply) |
| Sealing Method | Tape Sealing (48 Mm, 70 Mm Width Optional) | Carton Material | Corrugated Cardboard |
| Machine Noise | ≤ 75dB(A) | ||
| Highlight | robotic cartoning machine,robotic palletizing robots,high speed cartoning machine |
||
Product Description

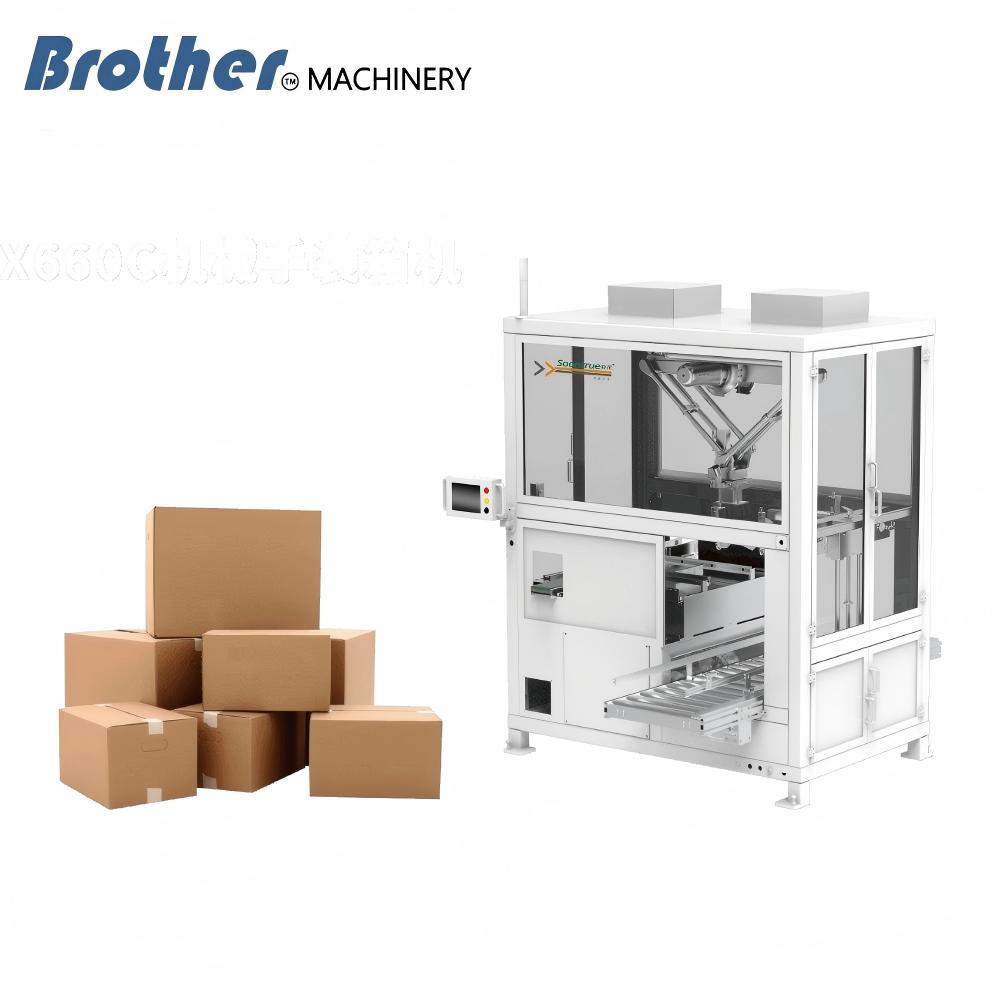

BMZX660C High-Speed Robotic Cartoning Machine
Advanced vertical robotic packing solution designed for efficient cartoning operations with flexible configuration options.
Key Features & Specifications
- Compact structure with configurable material handling equipment
- Simple design ensures stable, reliable operation and easy maintenance
- Automatic box feeding with missing box detection and alarm system
- Automatic material conveying shutdown during equipment malfunctions
- Mechanical overload protection with automatic safety shutdown
- Manual reset capability with servo control system recovery
- Tape-based sealing system for smooth, aesthetically pleasing results
- Touchscreen interface with manual/automatic cylinder operation selection
- Comprehensive safety warning signs on all moving parts
- Proper cable specifications: control wiring (multi-core × 1.5 mm²), signal wiring (shielded multi-core × 0.75 mm²)
- Integrated operating panel on safety door plane
- Fixed electrical control cabinet with organized wiring for easy maintenance
Competitive Advantages
- Flexible robotic arm carton packing layout with high adaptability
- Convenient product changeover and specification adjustments
- Space-saving design with minimal footprint requirements
Customization & Support Services
Small-Batch Customization: MOQ from 1 unit, adaptable to various product specifications including household paper and food packaging bags. Modular design enables quick adjustments to packaging speed, size, and materials.
Fast Delivery & Support: 15-35 day lead time with standardized components and localized supply chain. 24/7 technical support with 48-hour emergency service (priority for Asia, Africa, and Latin America).
Niche Market Specialization: 20 years of expertise in household paper packaging, optimized for small-to-medium capacity. Features include auto-alignment systems and low-noise design (<65dB).
Cost-Effective Solutions: 30-40% more cost-effective than international brands with comparable performance, reducing ROI period to 6-12 months. Energy-efficient servo motors reduce power consumption by 20%+.
Quality Assurance: Rigorous quality control from raw material inspection to 72-hour continuous load testing. Certified with CE and ISO9001, compliant with EU, Middle Eastern, and Southeast Asian standards.
