High Speed Robotic Case Packer 5-15 Boxes/Minute BMZX660B
| Place of Origin | CH |
|---|---|
| Brand Name | BM |
| Certification | CE |
| Model Number | BMZX660B |
| Minimum Order Quantity | 1 |
| Price | US$30000.00 - 60,000.00 |
| Packaging Details | PE Bag / Bubble Wrap/Plastic Blister /Molded Foam/ Corrugated Box/ Wooden Crate/Pallet |
| Delivery Time | 20-30 working days |
| Payment Terms | T/T |
| Supply Ability | 500 sets / year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Machine Type | Full Servo Full Auto | Product Type | Cartoning Machine |
|---|---|---|---|
| Designed Packing Speed | 5-15 Boxes/minute (depending On Product) | Length（mm） | 270-650mm |
| Width（mm） | 180-500mm | Height | 150-450mm |
| Machine Noise | ≤ 75dB(A) | Main Unit Heating Power | 15Kw(including Feeding Line) Packaging Material: Corrugated Cardboard Box |
| Power Supply Type | 380Vm/50Hz | Machine Weight | 2500KG |
| Dimensions | 7900*3200*2600mm(including Material Handling Line, Carton Opening Machine, Carton Sealing Machine) | ||
| Highlight | high speed robotic case packer,high speed robotic packing machine,15 boxes/minute robotic case packer |
||
Product Description

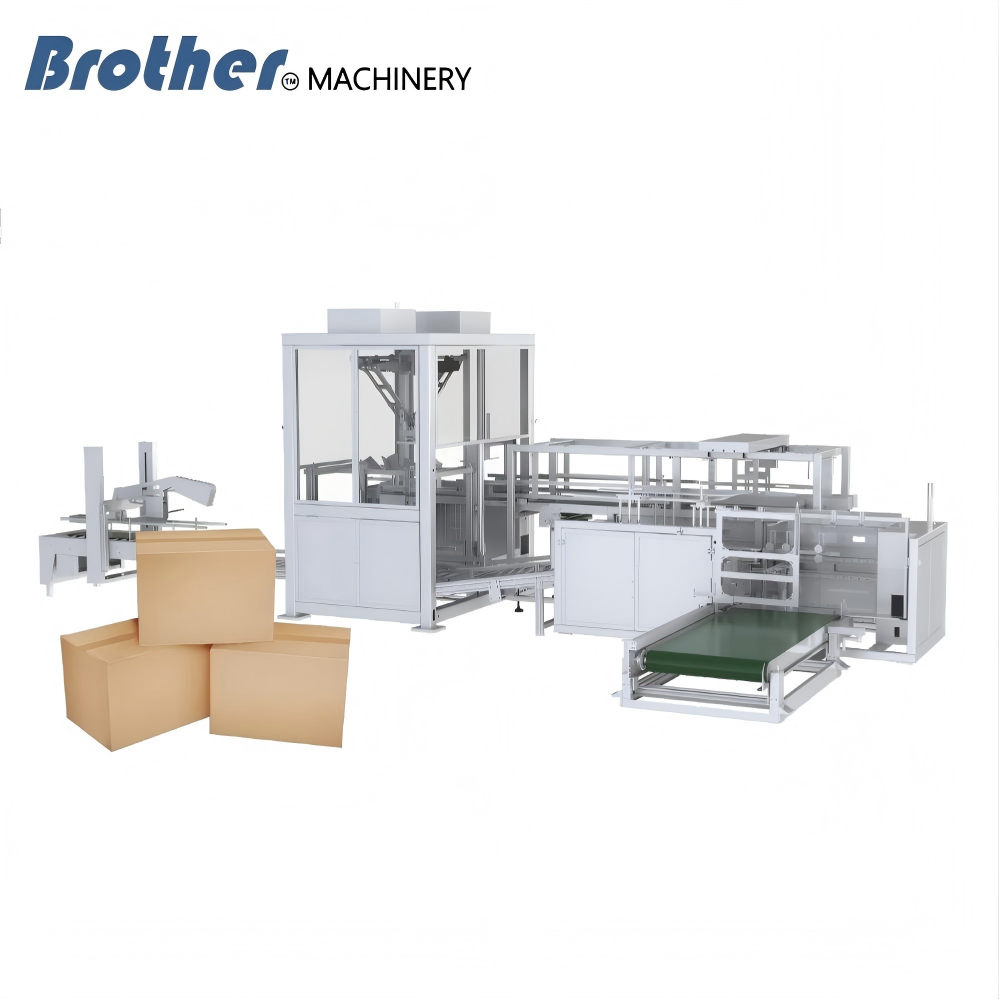

BMZX660B High-Speed Robotic Case Packer
Advanced robotic case packing solution delivering 5-15 boxes per minute with exceptional precision and reliability for industrial packaging operations.
Key Features & Performance
- Compact modular design with customizable material handling configurations
- Simple, robust structure ensuring stable operation and easy maintenance
- Automatic box feeding with missing box detection and alarm system
- Automatic material conveyance shutdown during equipment malfunctions
- Mechanical overload protection with automatic safety shutdown
- Manual reset capability with automatic servo control system recovery
- Tape-based sealing system for smooth, aesthetically pleasing seals
- Touchscreen interface with manual/automatic cylinder operation selection
- Comprehensive safety warning signs on all moving components
- Integrated electrical control cabinet with optimized wiring for maintenance
Technical Specifications
| Parameter | Specification |
|---|---|
| Packing Speed | 5-15 boxes per minute |
| Control Wiring | Multi-core × 1.5 mm² or larger cables |
| Signal Wiring | Seamless multi-core × 0.75 mm² shielded cables |
| Operating Panel | Integrated with safety door on operating side |
Competitive Advantages
- Flexible robotic arm carton packing layout with high adaptability
- Convenient product changeover and specification adjustments
- Space-efficient footprint for optimal facility utilization
Customization Capabilities
Small-Batch Production
Minimum order quantity starts from 1 unit with flexible adaptation to various product specifications including household paper and food packaging bags. Modular design enables rapid adjustments to packaging speed, size, and materials.
Fast Delivery & Support
Standardized components with localized supply chain ensure 15-35 day lead times. 24/7 technical support with on-site emergency service within 48 hours (priority for Asia, Africa, and Latin America).
Specialized Expertise
20 years of specialized experience in household paper packaging, optimized for small-to-medium capacity requirements. Continuous upgrades include auto-alignment systems and low-noise design (<65dB).
Cost Optimization
30-40% more cost-effective than international brands with comparable performance, reducing ROI period to 6-12 months. Energy-efficient designs with servo motors reducing power consumption by 20%+.
Quality Assurance
Rigorous quality control from raw material inspection to 72-hour continuous load testing. International certifications include CE and ISO9001, compliant with EU, Middle Eastern, and Southeast Asian standards.
