35-70 Bags/Min Cartoning Machine BMZH-300A Fully Automatic Vertical Cartoner
| Place of Origin | CH |
|---|---|
| Brand Name | BM |
| Certification | CE |
| Model Number | BMZH-300A |
| Minimum Order Quantity | 1 |
| Price | US$30,000.00 - 70,000.00 |
| Packaging Details | PE Bag / Bubble Wrap/Plastic Blister /Molded Foam/ Corrugated Box/ Wooden Crate/Pallet |
| Delivery Time | 20-30 working days |
| Payment Terms | T/T |
| Supply Ability | 500 sets / year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Machine Type | Full Servo Full Auto | Product Type | Cartoning Machine |
|---|---|---|---|
| Length（mm） | 150-300 Mm | Width（mm） | 100-240 Mm |
| Height（mm） | 30-100 Mm | Packaging Material | 250-350g/m2 |
| Gluing Method | Spray Glue / Pneumatic Rubber Lifting(to Be Ordered) | Rated Speed (P/min) | 35-70 Bags/min |
| Configuration | 15 Servos / Appearance Frosted Silver Carbon Steel | Gas Consumption | 150L/min |

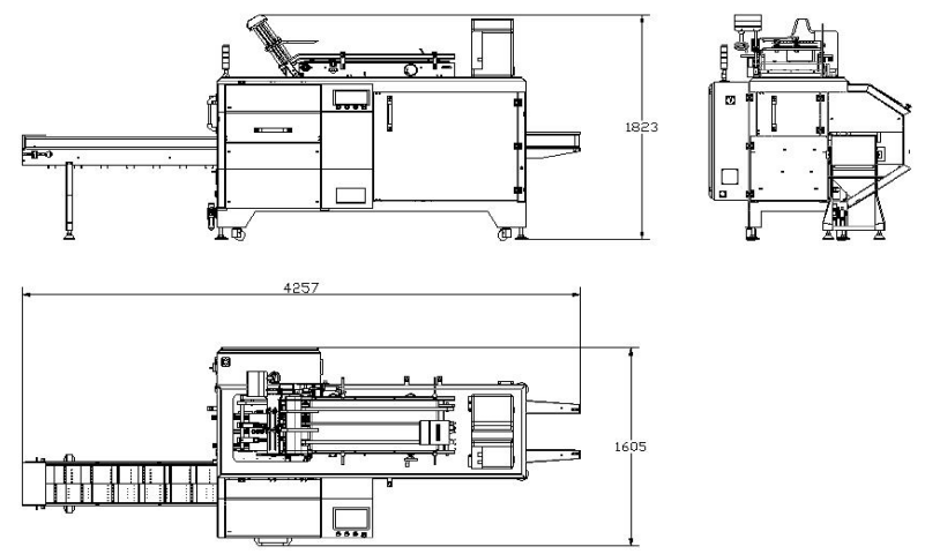

| Power Supply | (The Purchaser Is Responsible For Providing The Required External Power Cord):3-phase 380V 50Hz （3+N+P） | Equipment Dimensions (L X W X H) | 5042×1690×1940mm |
| Servo Motor Power | Approximately 8.15 KW | Net Weight | 950kg |
| Machine Noise | ≤ 70dB | Total Power (Hot Melt Glue Power Included) | 13.5 Kw |
| Highlight | 70 bags/min cartoning machine,70 bags/min vertical cartoner,380v cartoning machine |
||
Product Description

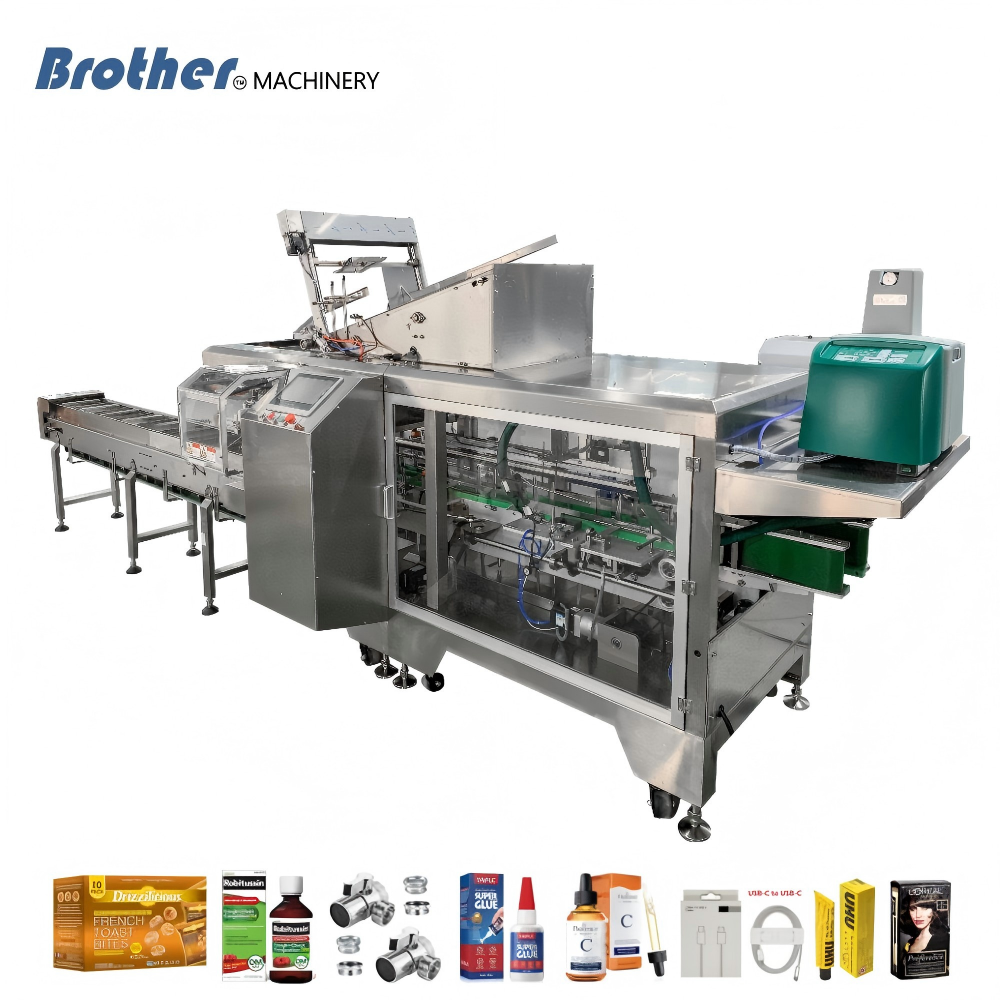

BMZH-300A Fully Automatic Vertical Cartoning Machine
High-speed automatic cartoning solution with output of 35-70 bags per minute, designed for efficient packaging of bottled and bagged products across multiple industries.
Key Features & Specifications
Output Capacity: 35-70 bags per minute
Operation Type: Fully Automatic Vertical Cartoner
Control System: PLC with Touchscreen Interface
Operation Type: Fully Automatic Vertical Cartoner
Control System: PLC with Touchscreen Interface
- Complete automated process: feeding, box opening, product insertion, gluing, and sealing
- 9 independent servo motors with individual control and monitoring
- Advanced feed detection and gluing verification systems
- Sleek sheet metal construction for durability and professional appearance
- Real-time operational data display with automatic recipe memory
- Quick product changeover with easy size adjustments
- High carton opening success rate with independent servo motor operation
- Comprehensive safety features with self-diagnostic fault indication
Industry Applications
Suitable for packaging operations in food, daily chemicals, agricultural chemicals, medical supplies, hardware products, confectionery, toys, and cosmetics industries.
Customization & Service Advantages
Flexible Small-Batch Production
MOQ starting from 1 unit with modular design for quick adjustments to packaging speed, size, and materials. Specialized in household paper and food packaging applications.
Rapid Delivery & Support
15-35 day lead time with standardized components and localized supply chain. 24/7 technical support with emergency service response within 48 hours (priority for Asia, Africa, and Latin America).
Niche Market Expertise
20 years of specialized experience in household paper packaging. Continuous upgrades include auto-alignment systems and low-noise operation (<65dB).
Cost-Effective Solutions
30-40% more cost-effective than international brands with comparable performance. Energy-efficient servo motors reduce power consumption by 20%+, achieving ROI in 6-12 months.
Quality Assurance
Rigorous quality control from raw materials to 72-hour continuous load testing. Certified with CE and ISO9001 standards, compliant with EU, Middle Eastern, and Southeast Asian requirements.
Optional Features
Additional capabilities include gluing systems, coding and stamping functions, and various auxiliary equipment to meet specific packaging requirements.
