Intelligent Cartoning Machine For Food Daily Chemicals Toys And Cosmetics
| Place of Origin | CH |
|---|---|
| Brand Name | BM |
| Certification | CE |
| Model Number | BMZH-100 |
| Minimum Order Quantity | 1 |
| Price | US$30,000.00 - 70,000.00 |
| Packaging Details | PE Bag / Bubble Wrap/Plastic Blister /Molded Foam/ Corrugated Box/ Wooden Crate/Pallet |
| Delivery Time | 20-30 working days |
| Payment Terms | T/T |
| Supply Ability | 500 sets / year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Machine Type | Full Servo Full Auto | Product Type | Cartoning Machine |
|---|---|---|---|
| Length（mm） | 65-150 Mm | Width（mm） | 25-110 Mm |
| Height（mm） | 15-60 Mm | Packaging Material | 250-350g/m2 |
| Gluing Method | Spray Glue / Pneumatic Rubber Lifting(to Be Ordered) | Rated Speed (P/min) | 30-80 Bags/min |
| Configuration | 9 Servos / Appearance Frosted Silver Carbon Steel | Gas Consumption | 280-320 L/min |

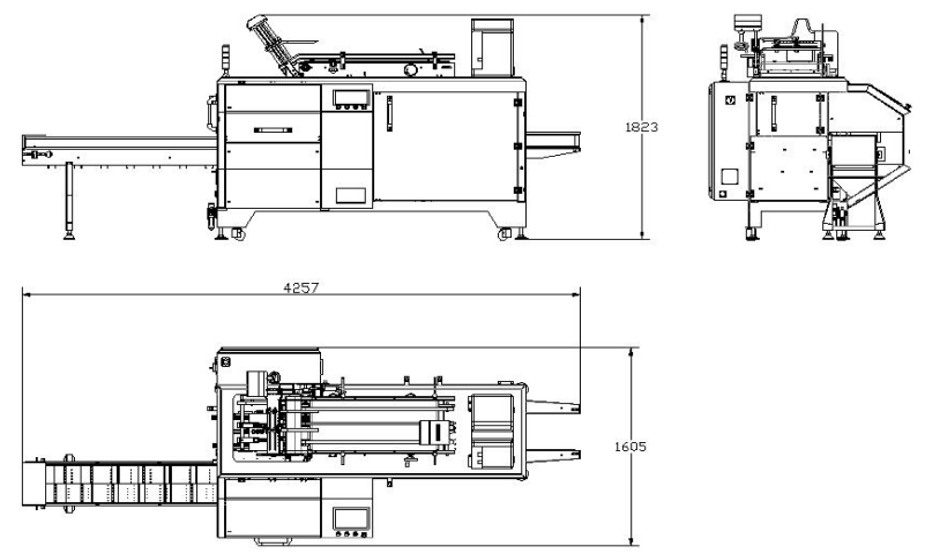

| Power Supply | (The Purchaser Is Responsible For Providing The Required External Power Cord):3-phase 380V 50Hz （3+N+P） | Equipment Dimensions (L X W X H) | 4456 X 1673 X1668 Mm |
| Servo Motor Power | Approximately 6.05 KW | Net Weight | 950kg |
| Machine Noise | ≤ 70dB | Total Power (Hot Melt Glue Power Included) | 11.1 Kw |
| Highlight | intelligent cartoning machine,intelligent palletizing robots,food cartoning machine |
||
Product Description

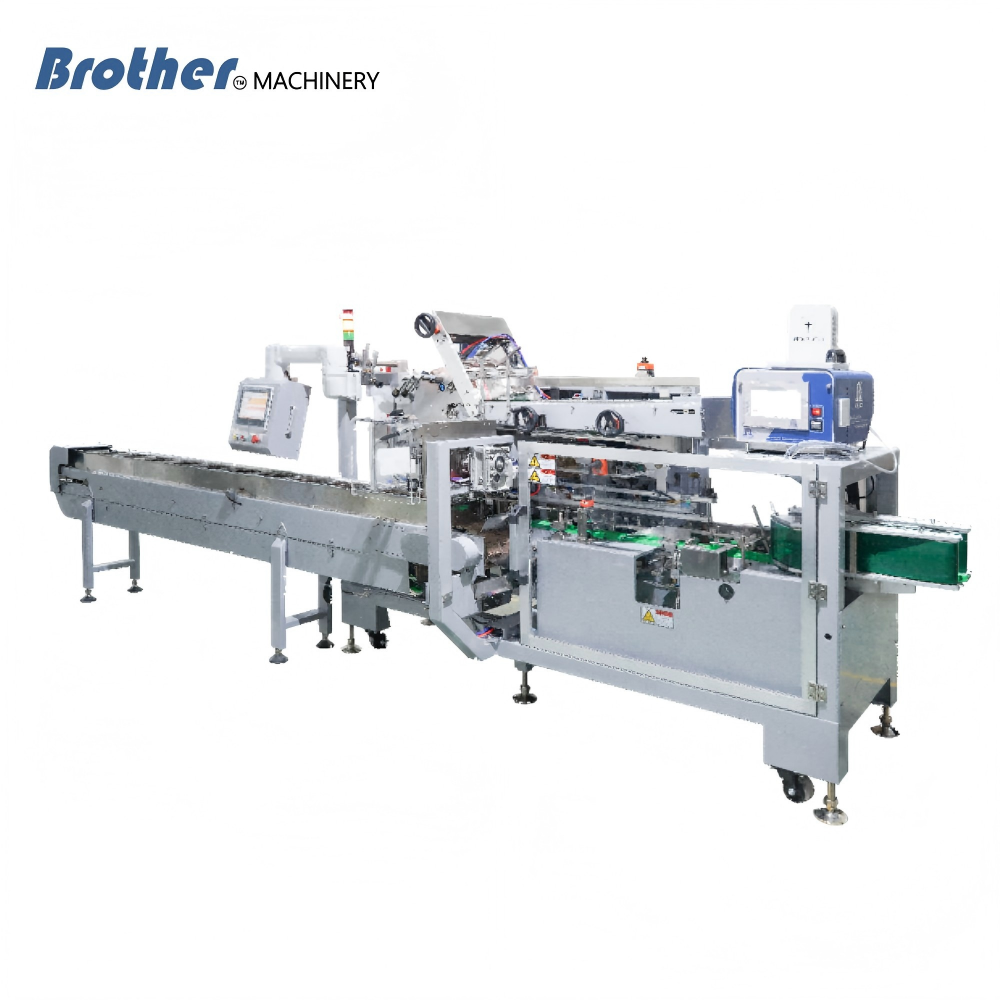

BMZH-100 Fully Servo Intelligent Cartoning Machine
Advanced automated cartoning solution for packaging bottled and bagged products across multiple industries including agricultural chemicals, daily chemical products, medical supplies, hardware products, and confectionery.
Key Features & Specifications
- Designed for automatic cartoning in food, daily chemicals, toys, and cosmetics industries
- Complete automation of feeding, opening, inserting, gluing, and sealing processes
- High yield rate with professional-quality seals for improved efficiency
- 9 independent servo motors with individual control systems
- Integrated feed detection and gluing detection systems
- Sleek sheet metal construction with aesthetic design and user-friendly operation
- PLC controller ensures stable and reliable performance
- Touchscreen interface displays real-time operating data and recipe management
- Compatible with various paper box sizes with convenient adjustment mechanisms
- Optional auxiliary functions including gluing, coding, and stamping
- Independent servo motor-driven carton opener ensures stable operation
- Comprehensive safety features with self-diagnostic functionality
Customization & Service Advantages
Flexible Small-Batch Production
Minimum order quantity starting from 1 unit, adaptable to various product specifications including household paper and food packaging bags. Modular design enables quick adjustments to packaging speed, size, and materials.
Rapid Delivery & Support
Standardized components with localized supply chain ensure 15-35 day lead time. 24/7 technical support with on-site emergency service within 48 hours (priority for Asia, Africa, and Latin America).
Niche Market Specialization
20 years of expertise in household paper packaging, optimized for small-to-medium capacity. Continuous upgrades include auto-alignment systems and low-noise design (<65dB).
Cost-Effective Solutions
30-40% more cost-effective than international brands with comparable performance, reducing ROI period to 6-12 months. Energy-efficient designs with servo motors reducing power consumption by 20%+.
Quality Assurance & Certifications
Rigorous quality control from raw material inspection to 72-hour continuous load testing. International certifications include CE and ISO9001, compliant with EU, Middle Eastern, and Southeast Asian standards.
