180-200 Bags/Min Fully Servo Intelligent Cartoning Machine 380V 50Hz BM-BH200
| Place of Origin | CH |
|---|---|
| Brand Name | BM |
| Certification | CE |
| Model Number | BMKS-HC-D80A |
| Minimum Order Quantity | 1 |
| Price | US$18,000.00 - 35,000.00 |
| Packaging Details | PE Bag / Bubble Wrap/Plastic Blister /Molded Foam/ Corrugated Box/ Wooden Crate/Pallet |
| Delivery Time | 20-30 working days |
| Payment Terms | T/T |
| Supply Ability | 500 sets / year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Machine Type | Full Servo Full Auto | Product Type | Cartoning Machine |
|---|---|---|---|
| Height（mm） | 140-250mm | Width（mm） | 50-180mm |
| Length（mm） | 30-80mm | Packaging Material | White Card 250-350g/m2 Gray Card 300-400g/m2 |
| Gluing Method | Spray Glue (Pneumatic Rubber Lifting(to Be Ordered) | Rated Speed (P/min) | 180-200 Bags/min |
| Air Consumption | 200L/min | Equipment Dimensions (L X W X H) | 6100*1900*800 Mm |
| Power Supply | 380V 50Hz (The Purchaser Is Responsible For Providing The Required External Power Cord) | Servo Motor Total Power | Approximately 5.5kW |
| Hot Melt Glue Power | 2 Kw | Net Weight | 1000kg |
| Compressed Air Pressure (MPa) | 0.6-0.8MPa (The Air Source And External Air Inlet Pipe Required For The Packaging Machine Are Provided By The Purchaser) | Machine Noise | ≤ 70dB |
| Highlight | intelligent cartoning machine,cartoning machine 380v,intelligent palletizing robots |
||
Product Description

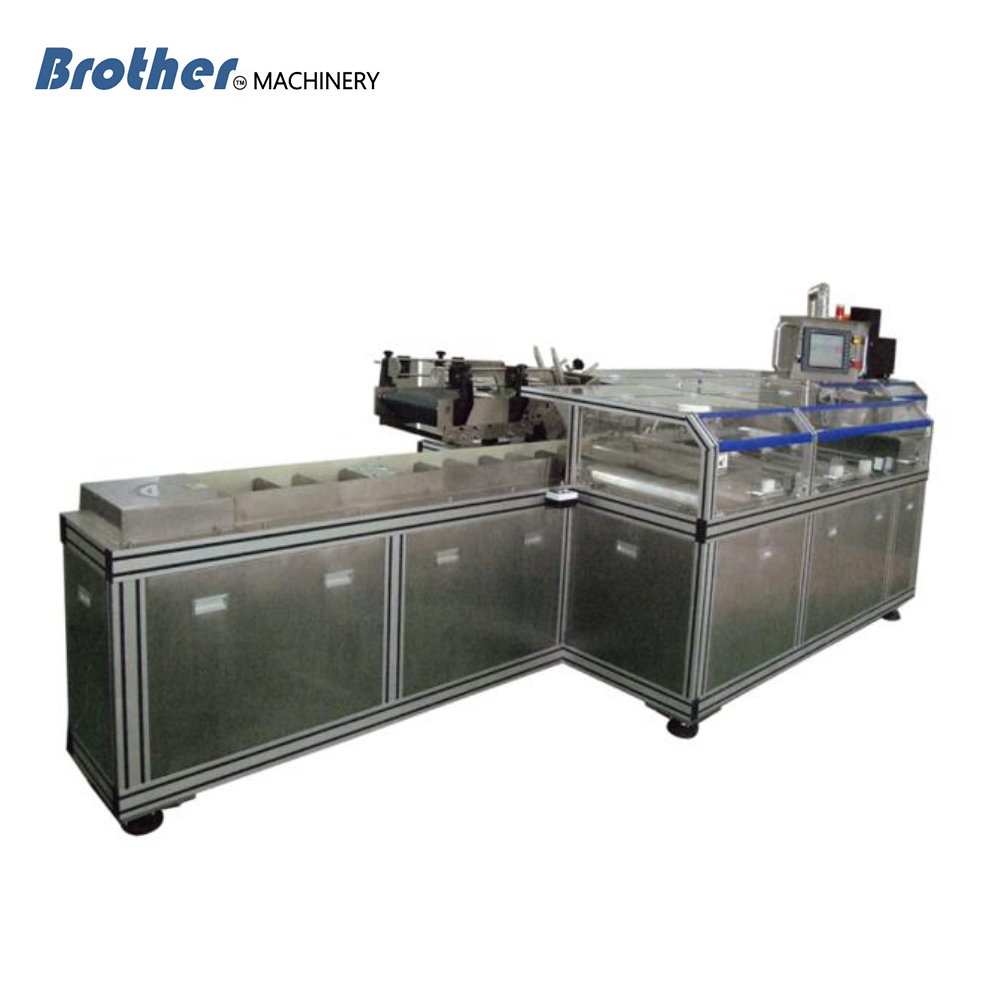

BM-BH200 Fully Servo Intelligent Cartoning Machine
Product Description
- It is suitable for the automatic sorting, boxing and sealing of various bagged materials, sheet and regular block materials and manuals in various industries such as food, medicine, chemicals, hardware, plastics, paper products, and auto parts.
- The three-head suction box mechanism ensures high-speed and stable operation of the equipment;
- The operation is simple, the application range is wide, and the operating speed can be set according to the demand of production capacity;
- It can complete automatic box suction, box opening, feeding, folding ears, glue spraying, pressing box forming, conveying, etc.;
- It can be equipped with imported brand glue spraying machine with stable and reliable performance;
- Adopt PLC control, touch screen operation, can set the glue spray form (point spray or line spray) according to the product and box type sealing requirements;
- It can be connected with ribbon printer, thermal transfer printer and inkjet printer;
- It can greatly reduce packaging labor and improve packaging quality and production efficiency;
- It can be a stand-alone machine or cooperate with other packaging equipment to complete the automatic flow operation.
- Expert in Small-Batch Customization - MOQ starts from 1 unit, flexibly adaptable to various product specifications (household paper, food packaging bags, etc.). Modular design enables quick adjustments to packaging speed, size, and materials.
- Fast Delivery & Agile Response - Standardized components with localized supply chain ensure 15-35-day lead time. 24/7 technical support with on-site emergency service within 48 hours (priority for Asia, Africa, and Latin America).
- Specialization in Niche Markets - 20 years of expertise in household paper packaging, optimized for small-to-medium capacity. Continuous upgrades include auto-alignment systems and low-noise design (<65dB).
- Cost-Optimized Solutions - 30-40% more cost-effective than international brands with comparable performance, reducing ROI period to 6-12 months. Energy-efficient designs (servo motors reduce power consumption by 20%+).
- Quality Control & Certifications - Rigorous quality control from raw material inspection to 72-hour continuous load testing. International certifications include CE and ISO9001, compliant with EU, Middle Eastern, and Southeast Asian standards.
Support and Services
Packing and Shipping
Frequently Asked Questions
Q1: Are you manufacturer or trading company?
We are a professional manufacturer based in Xiamen, China, with a strong foundation in mechanical engineering and precision manufacturing. Our founder brings 30 years of hands-on experience in mechanical technology.
Q2: How do I choose the right filling machine for my business?
Please provide: 1) Product packaging type, 2) Filling material, 3) Filling capacity, 4) Industry, 5) Filling speed, and 6) Budget. We will recommend the optimal filling machine for your requirements.
Q3: What product can your packing machine pack?
Our packaging machines handle powders, granules, liquids, and irregular products.
Q4: How far is your factory from the airport?
Our factory is 30 minutes from Xiamen Gaoqi International Airport. We provide pick-up service for visiting clients.
Q5: How about the after service and guarantee period?
12-month guarantee from machine arrival. Our professional team provides lifetime support to ensure optimal machine performance.
Q6: If I place an order now, how long until delivery?
Delivery time depends on order size and machine specifications. Our location in the industrial belt enables rapid customization and modification, ensuring timely delivery.
