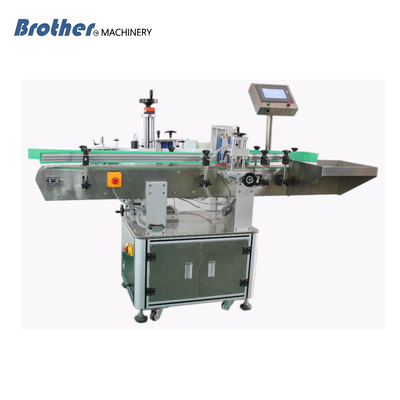

Fully Automatic Vertical Positioning Round Bottle Labeling Machine For Red Wine Pill Bottle Food Can

BMFK805 Fully Automatic Vertical Positioning Round Bottle Labeling Machine For Red Wine, Pill Bottle, Food Can

• Suitable for labeling the circumference of round bottles.

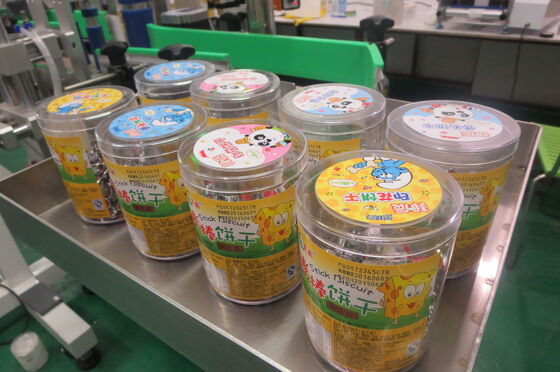

• It can apply single or double labels, with adjustable spacing between front and back labels. Applications include labeling round bottles of gel spray, round food cans, etc., and are widely used in the cosmetics, food, pharmaceutical, and disinfectant industries.
• An optional circumferential positioning detection device allows for labeling at designated positions on the circumference.
• Optional color ribbon coding machine and inkjet printer can print production dates and batch numbers on the labels, achieving integrated labeling and coding.

SCOPE OF APPLICATION

• Applicable Labels: Self-adhesive labels, self-adhesive films, electronic supervision codes, barcodes, etc.
• Applicable Products: Round bottles with diameters between 20mm and 90mm.
• Application Industries: Widely used in pharmaceuticals, food, toys, daily chemicals, and other industries.

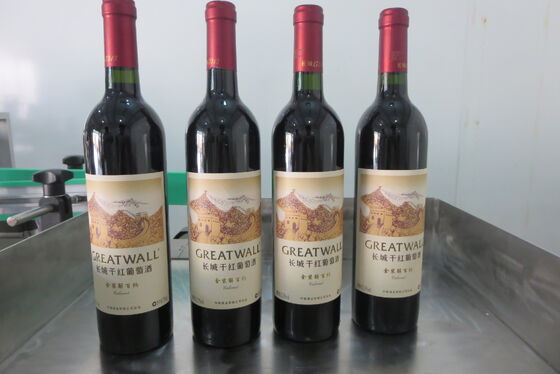

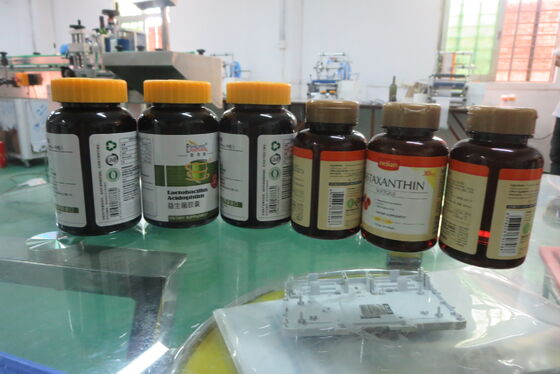

• Application Examples: Labeling disinfectant bottles, double-label application for gel spray, positioning label application for wine bottles, etc.

FUNCTIONAL FEATURES

• High label overlap: Equipped with an upper pressure mechanism combined with a 3-axis positioning mechanism, it eliminates bottle vertical fluctuations, improving labeling accuracy.
• Automatic bottle separation: Utilizes a spring-loaded bottle separation mechanism, effectively eliminating separation difficulties caused by bottle inherent errors, improving stability.
• Touchscreen control: The human-machine interface features operation guidance functions, intuitive parameter modification, and simple function switching.
• Intelligent control: Automatic photoelectric tracking, with functions such as no labeling without an object, automatic label correction, and automatic label detection, avoiding waste. Labeling issues and missing labels;
• Robust and hygienic, primarily constructed of stainless steel and high-grade aluminum alloy, ensuring robust quality and meeting GMP production requirements;
• Features automatic shutdown, production counting, and power-saving functions (automatically switches to power-saving standby mode when no production occurs within a set time), production count setting prompts, and parameter setting protection (parameter settings are managed by access control) for convenient production management;
• Optional functions:

① Thermal coding/inkjet coding;

② Automatic feeding (vertical bottle feeder);

③ Automatic receiving (considering product requirements)

④ Adding a labeling device;

CUSTOMIZATION

• Expert in Small-Batch Customization - MOQ starts from 1 unit, flexibly adaptable to various product specifications (household paper, food packaging bags, etc.). Modular design enables quick adjustments to packaging speed, size, and materials.
• Fast Delivery & Agile Response - Standardized components with localized supply chain ensure 15-35-day lead time. 24/7 technical support with on-site emergency service within 48 hours (priority for Asia, Africa, and Latin America).
• Specialization in Niche Markets - 20 years of expertise in household paper packaging, optimized for small-to-medium capacity. Continuous upgrades include auto-alignment systems and low-noise design (<65dB).
• Cost-Optimized Solutions - 30-40% more cost-effective than international brands with comparable performance, reducing ROI period to 6-12 months. Energy-efficient designs (servo motors reduce power consumption by 20%+).
• Quality Control & Certifications - Rigorous quality control from raw material inspection to 72-hour continuous load testing. International certifications include CE and ISO9001, compliant with EU, Middle Eastern, and Southeast Asian standards.
