Front And Rear Sides Roller Flat Surface Label Applicator BML617 Semi Automatic
| Place of Origin | CH |
|---|---|
| Brand Name | BM |
| Certification | CE |
| Model Number | BML617 |
| Minimum Order Quantity | 1 |
| Price | US$1500-3000 |
| Packaging Details | PE Bag / Bubble Wrap/Plastic Blister /Molded Foam/ Corrugated Box/ Wooden Crate/Pallet |
| Delivery Time | 20-30 working days |
| Payment Terms | T/T |
| Supply Ability | 500 sets / year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Machine Type | Semi Auto | Product Type | Labeling Machine |
|---|---|---|---|
| Labeling Accuracy | ±0.5mm (excluding Product And Label Errors); | Labeling Speed | 15-30 Pieces/minute (depending On Product Size And Employee Skill) |
| Applicable Product Diameter | Ø76mm Applicable Label Outer Diameter: Ø240mm | Applicable Label Size | Length: 15mm～100mm / Width: 15mm～110mm |
| Overall Machine Dimensions | Approx. 850mm × 470mm × 720mm | Applicable Label Inner Diameter | Ø76mm Applicable Label Outer Diameter: Ø300mm |
| Power Supply | 220V/50HZ | Overall Machine Weight | Approx. 41Kg |
| Applicable Product Sizes | Length: 20mm-250mm; Width: 20mm-150mm; Thickness: 0.2mm-120mm | ||
| Highlight | roller flat surface label applicator,roller flat label applicator,semi automatic flat label applicator |
||
Product Description

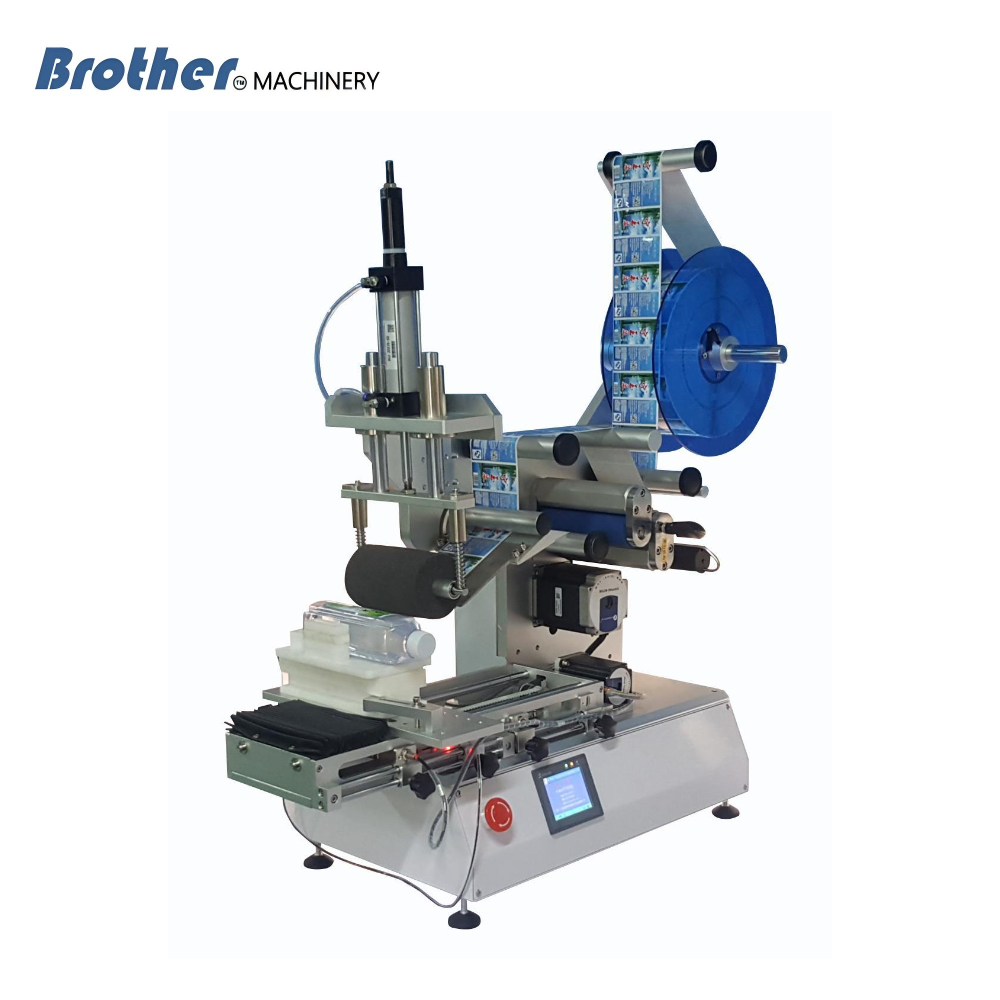

BML617 Semi-Automatic Flat Surface Label Applicator
The BML617 semi-automatic labeling machine utilizes suction-based technology to apply labels to flat surfaces of various workpieces including cosmetic bottles, packaging boxes, and plastic caps. With adaptable mechanisms, it can handle uneven, concave, and curved surfaces, as well as irregular workpieces through fixture modifications.
Integrated Labeling & Coding Capabilities
Optional ribbon coding or inkjet printers enable printing of production dates and batch numbers directly on labels, providing integrated coding and labeling solutions.
Application Scope
- Label Types: Self-adhesive labels, films, electronic supervision codes, barcodes
- Surface Compatibility: Flat, curved, circular, concave, convex surfaces
- Industry Applications: Cosmetics, food, toys, daily chemicals, electronics, pharmaceuticals
- Product Examples: Shampoo bottles, packaging boxes, bottle caps, plastic shells
Functional Features
- Versatile labeling for flat, curved, concave surfaces and irregular workpieces
- Precision labeling with PLC + microstepping motor drive and brake function
- Label tape correction mechanism prevents lateral deviation
- Durable construction with separated electrical/pneumatic circuits
- High-grade aluminum alloy and stainless steel construction
- Adjustable height and stroke for different product heights
- Dual manual and automatic control modes with sensor or foot pedal operation
- Adjustable label dispensing length
Optional Functions
- Thermal coding/inkjet coding functionality
- Automatic feeding and receiving systems
- Special label photocells
Customization Advantages
- Small-Batch Flexibility: MOQ from 1 unit, modular design for quick adjustments
- Rapid Delivery: 15-35 day lead time with 24/7 technical support
- Niche Expertise: 20 years specializing in household paper packaging
- Cost Efficiency: 30-40% more affordable than international brands
- Quality Assurance: CE and ISO9001 certified with rigorous testing protocols
