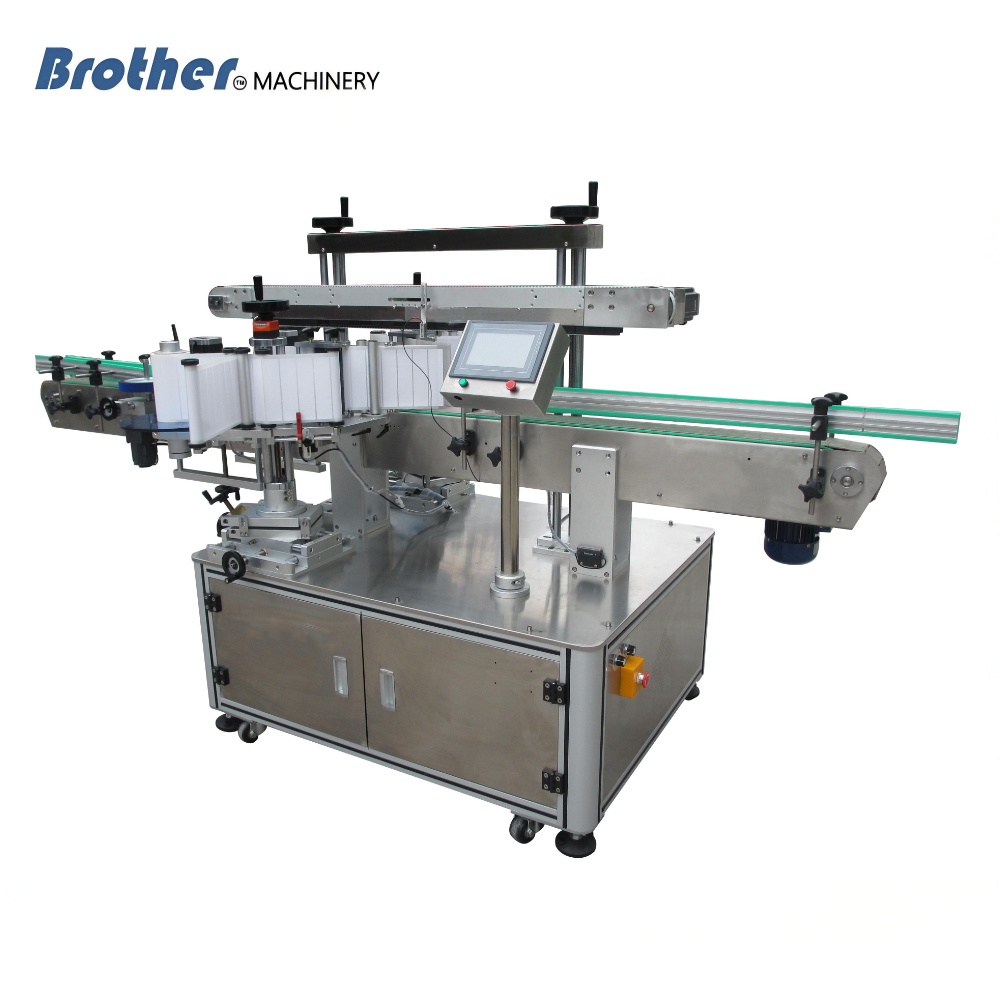

Roller Double Sided Labeling Machine For Gasoline Bottles Cleaning Agents Laundry Detergent
| Place of Origin | CH |
|---|---|
| Brand Name | BM |
| Certification | CE |
| Model Number | BMFK911 |
| Minimum Order Quantity | 1 |
| Price | US$13000-17500 |
| Packaging Details | PE Bag / Bubble Wrap/Plastic Blister /Molded Foam/ Corrugated Box/ Wooden Crate/Pallet |
| Delivery Time | 20-30 working days |
| Payment Terms | T/T |
| Supply Ability | 500 sets / year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Machine Type | Fully Auto | Product Type | Labeling Machine |
|---|---|---|---|
| Labeling Accuracy | ±1mm | Labeling Speed | Stepper: 30～160pcs/min Servo: 50～200pcs/min |
| Applicable Label Size | Length: 20mm～220mm, Width (backing Paper Width): 20mm～160mm | Overall Machine Dimensions | Approx.3000mm × 1450mm × 1600mm |
| Applicable Label Inner Diameter | Ø76mm Applicable Label Outer Diameter: Ø280mm | Power Supply | 220V/50HZ |
| Overall Machine Weight | Approx. 330Kg | Applicable Product Sizes | Length (conveying Direction): 20mm～250mm Width (conveying Width Direction): 30mm～90mm Height: 60mm～280mm |
| Power (W) | 1100W (Traction Stepper) 1600W (Traction Servo) | Label Dispensing Speed (m/min) | Stepper: 5～19m/min Servo: 5～40m/min |
| Conveying Speed (m/min) | 16m/min | ||
| Highlight | roller double sided labeling machine,roller bottle labeling machine,double sided bottle labeling machine |
||
Product Description
BMFK911 Semi-Automatic Double-Sided Roller Labeling Machine
Professional labeling solution for gasoline bottles, cleaning agents, and laundry detergent containers.
This versatile machine handles both single-sided and double-sided labeling applications with precision and efficiency.
Application Scope
Compatible Labels: Self-adhesive labels, films, electronic supervision codes, barcodes
Product Types: Flat, round, square, and irregularly shaped bottles requiring side plane, large-curvature side surface, or circumferential labeling
Industry Applications: Cosmetics, daily chemicals, electronics, pharmaceuticals, hardware, plastics
Examples: Flat shampoo bottles, lubricating oil bottles, round hand sanitizer containers
Key Features & Benefits
- Multi-functional design handles single-sided and double-sided labeling for round, flat, square, and irregular bottles
- Double-sided rigid plastic synchronous guide chains ensure automatic bottle centering
- Spring-loaded top-pressing mechanism for smooth conveying and height error elimination
- Automatic bottle-separating mechanism ensures stable guiding and labeling processes
- Dual-layer labeling system: first layer for accuracy, second layer for bubble elimination and secure sealing
- Intelligent control with photoelectric tracking: no-labeling-no-item, automatic correction, and detection
- GMP-compliant construction with stainless steel and high-grade aluminum alloy
- Robust, aesthetically pleasing design built for industrial environments
Customization & Support
- Small-batch customization with MOQ starting from 1 unit
- Modular design for quick adjustments to speed, size, and materials
- Fast delivery: 15-35 days with standardized components and local supply chain
- 24/7 technical support with 48-hour on-site emergency service
- 20 years of expertise in household paper packaging and niche markets
- Cost-optimized solutions: 30-40% more affordable than international brands
- Energy-efficient design with servo motors reducing power consumption by 20%+
- Rigorous quality control with CE and ISO9001 certifications
Product Gallery
For detailed technical specifications and labeling demonstration videos, please contact our technical team.
