BMFK812 Fully Automatic Card Labeling Machine For Name Card Plastic Bag

Place of Origin CH
Brand Name BM
Certification CE
Model Number BMFK812
Minimum Order Quantity 1
Price US$4000-8000
Packaging Details PE Bag / Bubble Wrap/Plastic Blister /Molded Foam/ Corrugated Box/ Wooden Crate/Pallet
Delivery Time 20-30 working days
Payment Terms T/T
Supply Ability 500 sets / year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Machine Type Fully Auto Product Type Labeling Machine
Labeling Accuracy ±1mm Labeling Speed 60-120 Pieces/min (depending On Product Size)
Applicable Product Diameter Ø 10mm~Ø 30mm; (Custom Sizes Available Upon Request) Applicable Label Size Length: 6mm~150mm, Width (backing Paper Width): 6mm~130mm
Overall Machine Dimensions Approx. 1600mm×780mm×1400mm Applicable Label Inner Diameter Ø76mm Applicable Label Outer Diameter: Ø260mm
Power Supply 220V/50HZ Overall Machine Weight Approx. 180Kg
Applicable Product Sizes Length: 40mm~400mm, Width: 40mm~200mm, Height: 0.2mm~120mm (customizable Based On Samples)
Highlight

fully automatic card labeling machine

,

fully automatic bottle labeling machine

,

plastic bag card labeling machine

Leave a Message
Product Description

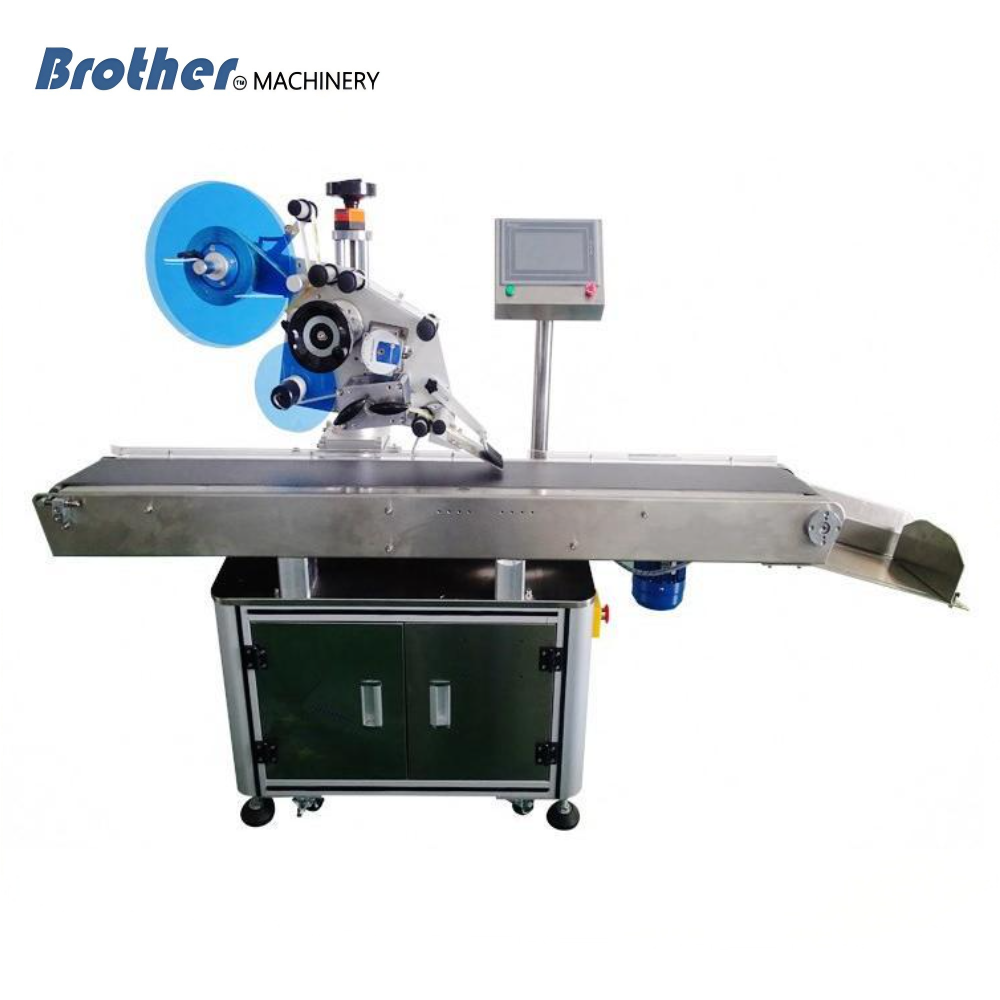

BMFK812 Fully Automatic Card Labeling Machine
High-precision automatic labeling machine specifically designed for applying protective film and labels to name cards, plastic bags, and various card types with bubble-free application.
Application Scope
  • Applicable Labels: Self-adhesive labels, films, electronic supervision codes, barcodes
  • Applicable Products: Flat or highly curved surfaces requiring labels or films
  • Application Industries: Electronics, hardware, plastics, chemical industries
  • Application Examples: Cardboard labeling, acrylic film application, large plastic part film application, ceramic sheet film application
  • Functional Features
  • Stable Card Sorting: Advanced sorting-reverse roller technology for superior card sorting rates
  • High Speed Operation: Stable labeling speed exceeding 200 pieces/minute for medicine box regulatory codes
  • Wide Applicability: Suitable for various cards, paper items, and folded cardboard boxes
  • Precision Labeling: Pressure rollers smooth workpieces to prevent tilting and ensure accuracy
  • Flexible Adjustment: 6-DOF micro-adjustment system for easy product switching and label winding
  • Intelligent Control: Photoelectric tracking with no-label protection, automatic correction, and detection
  • High Stability: Advanced electronic control system with Panasonic PLC, touchscreen, and German Leuze sensors for 24/7 operation
  • Advanced Functions: Fault alarm, production counting, power saving, production number setting, parameter protection
  • Optional Functions & Components
  • Thermal coding/inkjet coding function
  • Automatic material receiving function
  • Automatic feeding function
  • Additional labeling devices
  • Custom functions based on customer requirements
  • Customization Capabilities
    Small-Batch Customization: MOQ from 1 unit, adaptable to various product specifications including household paper and food packaging bags
    Fast Delivery: 15-35 day lead time with 24/7 technical support and 48-hour emergency service
    Specialized Expertise: 20 years in household paper packaging with auto-alignment systems and low-noise design (<65dB)
    Cost Optimization: 30-40% more cost-effective than international brands with 6-12 month ROI and 20%+ energy savings
    Quality Assurance: Rigorous QC from raw materials to 72-hour load testing with CE and ISO9001 certifications
    Product Images

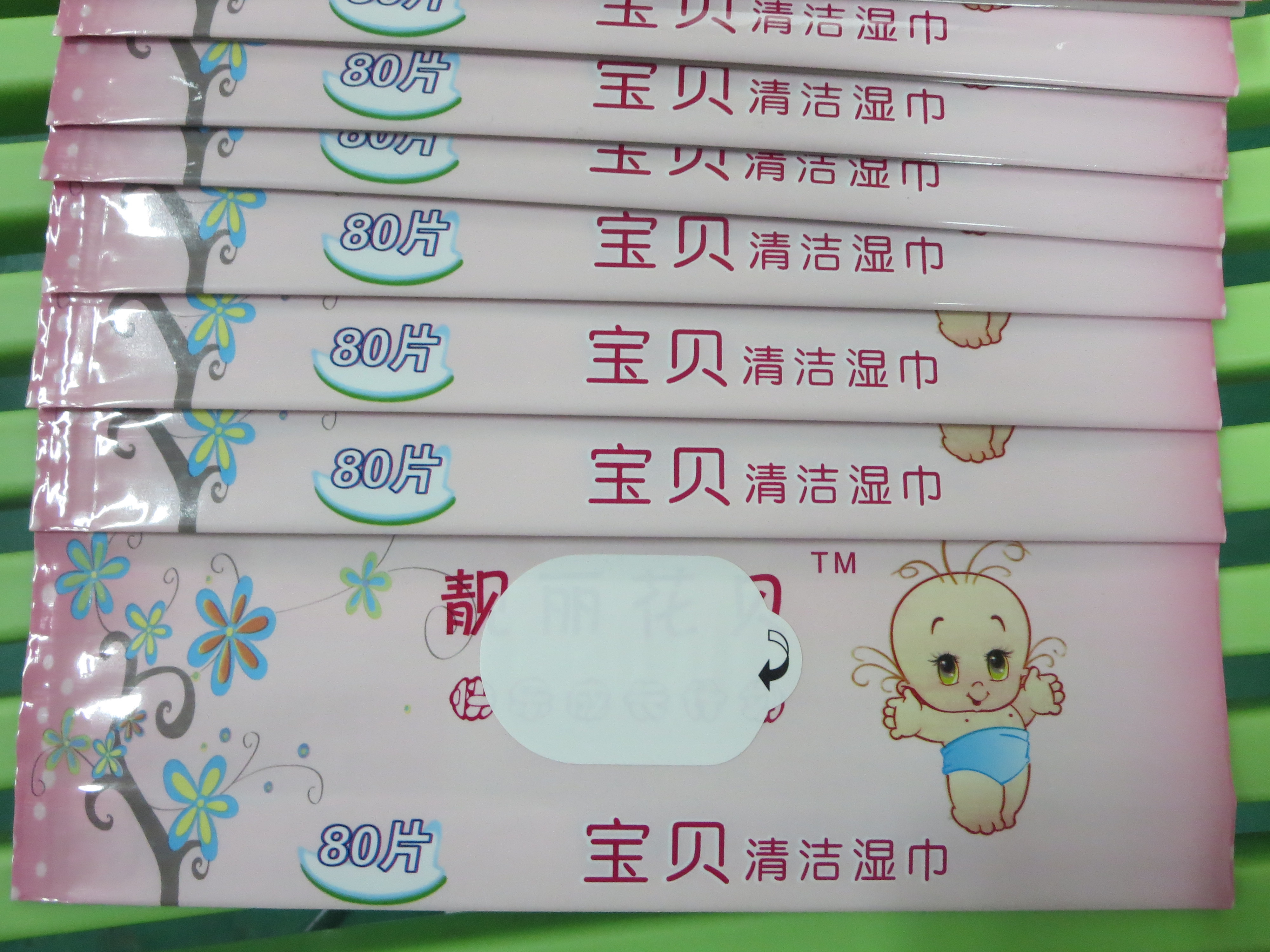

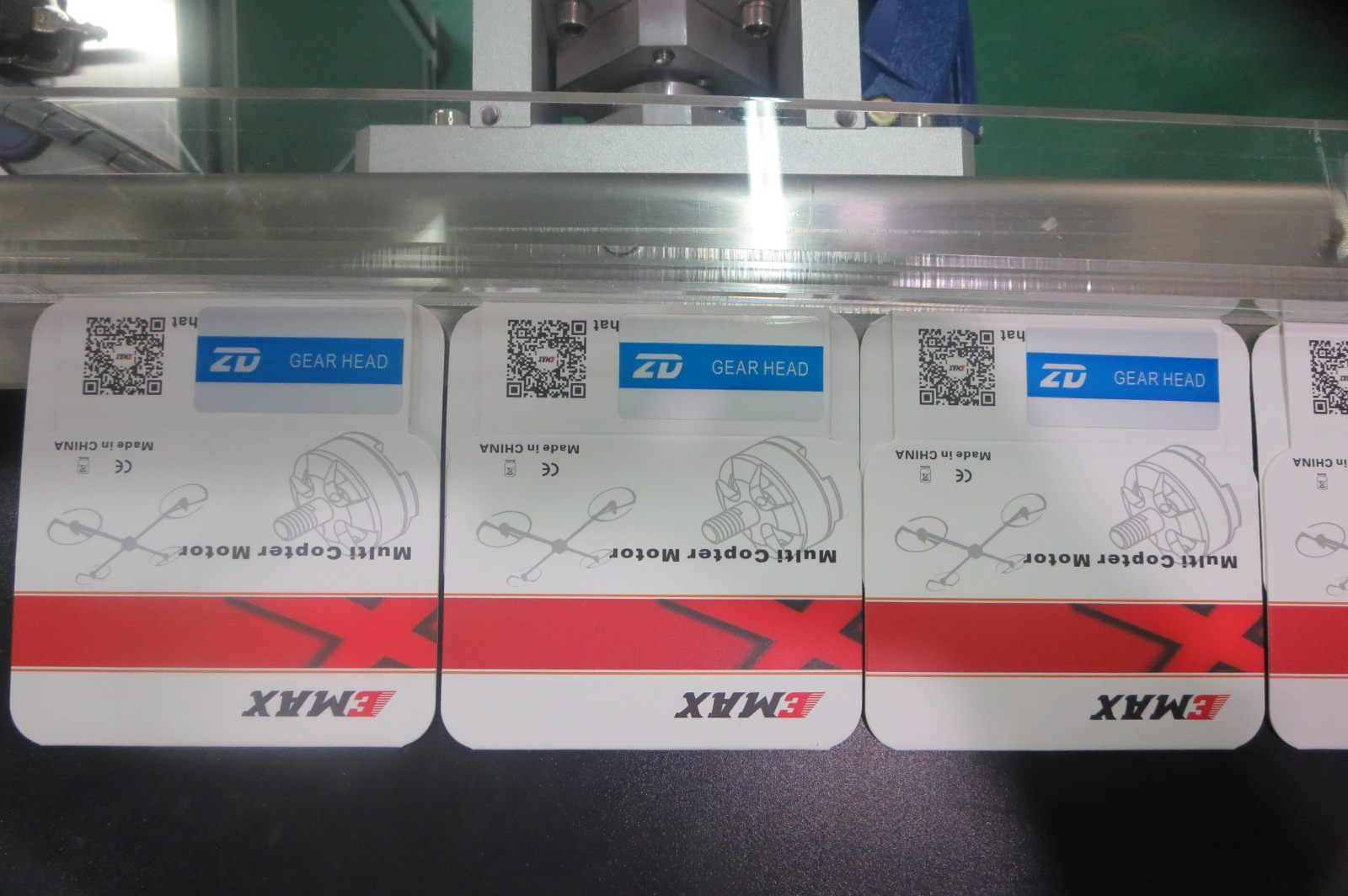

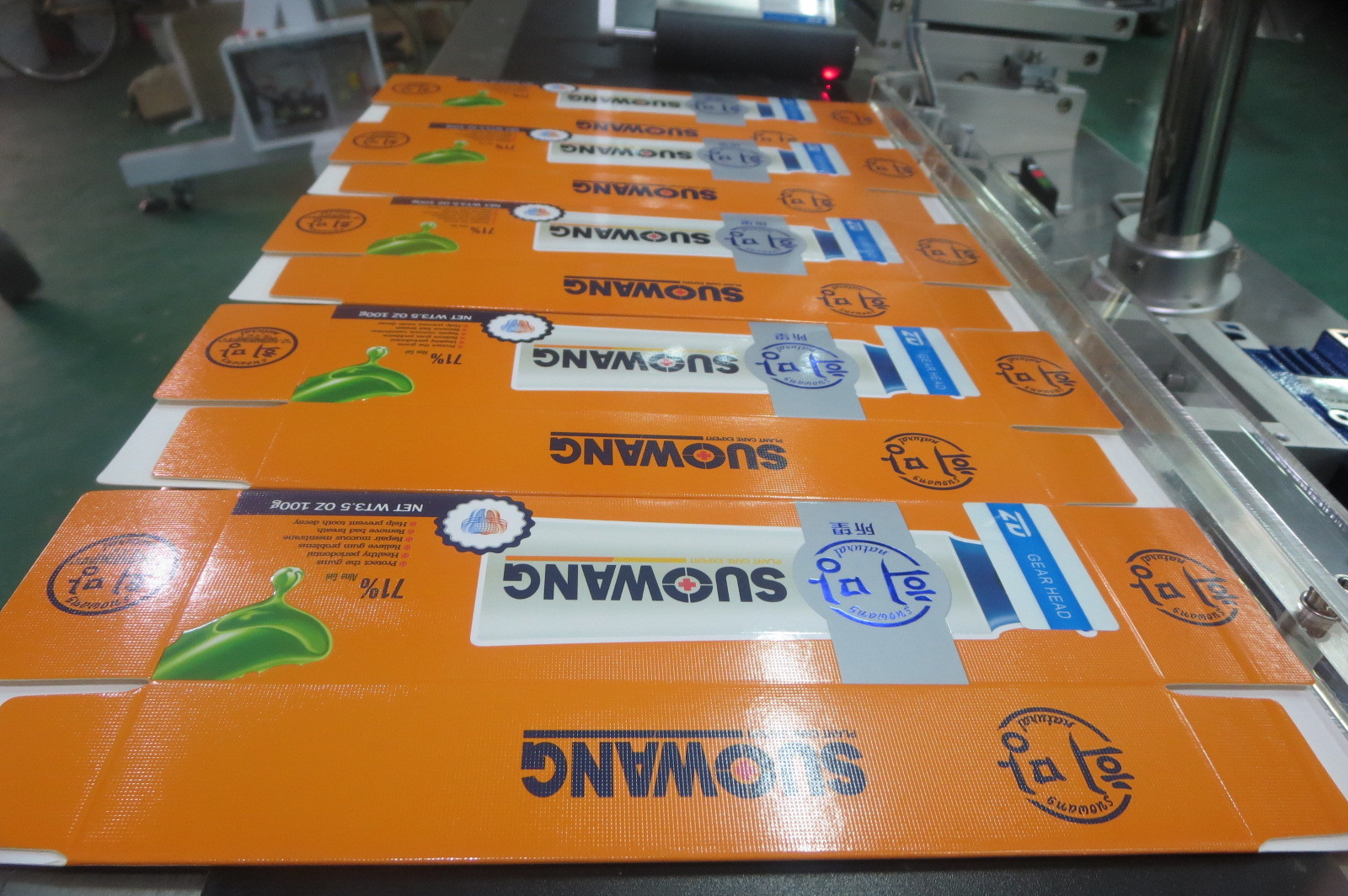

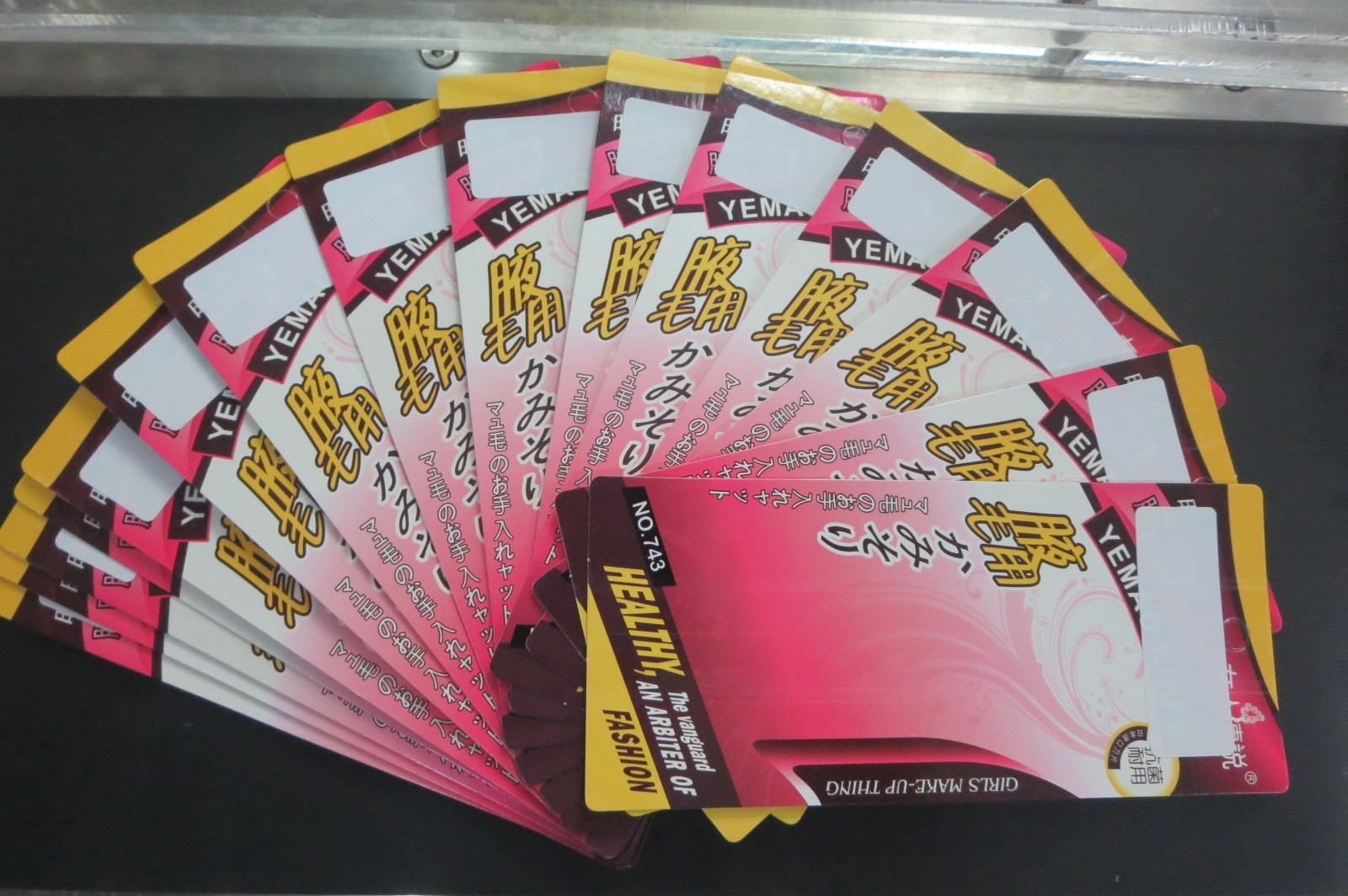

    BMFK812 Fully Automatic Card Labeling Machine For Name Card Plastic Bag 0 BMFK812 Fully Automatic Card Labeling Machine For Name Card Plastic Bag 1 BMFK812 Fully Automatic Card Labeling Machine For Name Card Plastic Bag 2 BMFK812 Fully Automatic Card Labeling Machine For Name Card Plastic Bag 3 BMFK812 Fully Automatic Card Labeling Machine For Name Card Plastic Bag 4 BMFK812 Fully Automatic Card Labeling Machine For Name Card Plastic Bag 5 BMFK812 Fully Automatic Card Labeling Machine For Name Card Plastic Bag 6 BMFK812 Fully Automatic Card Labeling Machine For Name Card Plastic Bag 7 BMFK812 Fully Automatic Card Labeling Machine For Name Card Plastic Bag 8 BMFK812 Fully Automatic Card Labeling Machine For Name Card Plastic Bag 9 BMFK812 Fully Automatic Card Labeling Machine For Name Card Plastic Bag 10 BMFK812 Fully Automatic Card Labeling Machine For Name Card Plastic Bag 11
