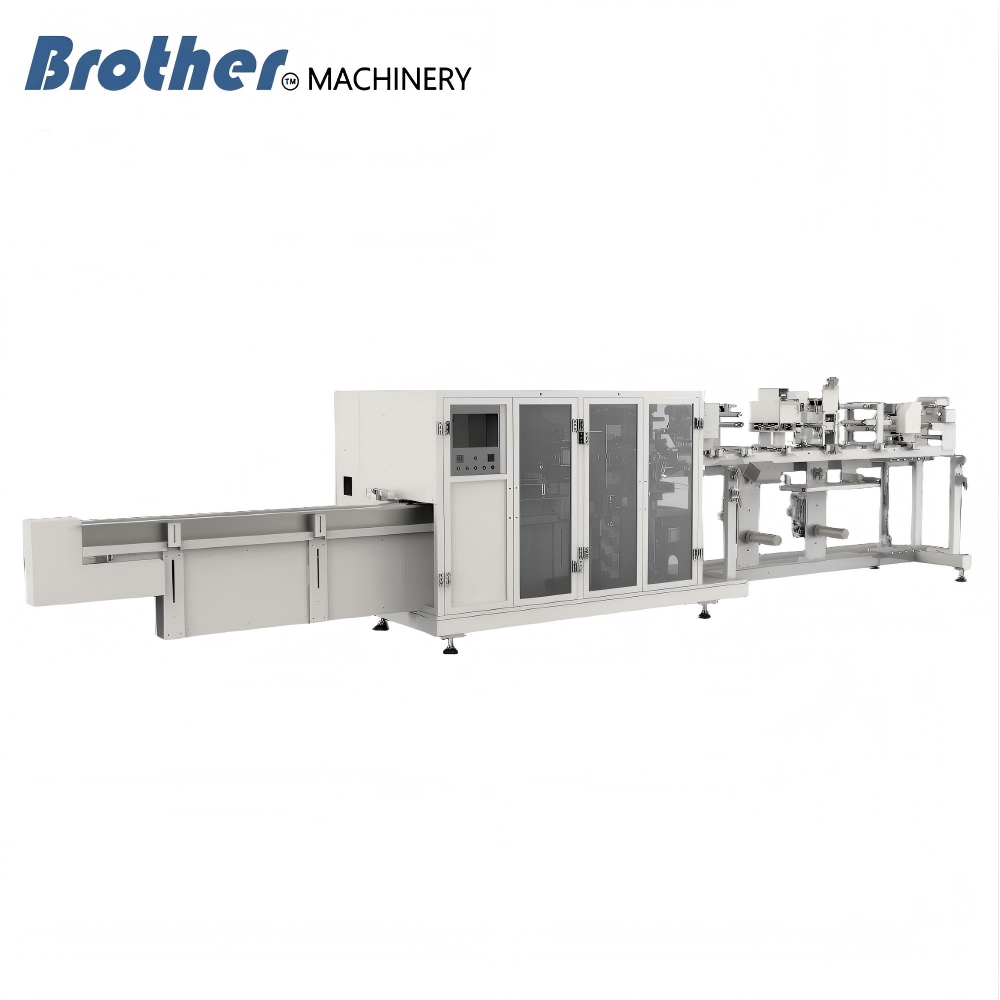

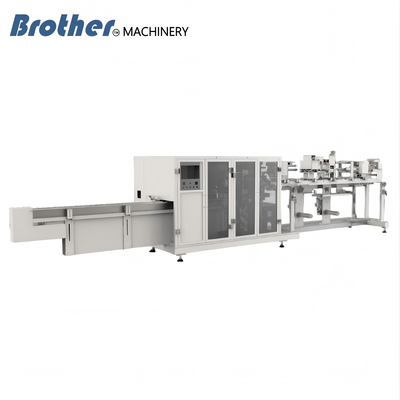

11kw 4P380V Automatic Sanitary Napkin Packaging Machine BMZB 800W
| Place of Origin | CH |
|---|---|
| Brand Name | BM |
| Certification | CE |
| Model Number | BMZB800W |
| Minimum Order Quantity | 1 |
| Price | US$30000.00 - 60,000.00 |
| Packaging Details | PE Bag / Bubble Wrap/Plastic Blister /Molded Foam/ Corrugated Box/ Wooden Crate/Pallet |
| Delivery Time | 20-30 working days |
| Payment Terms | T/T |
| Supply Ability | 500 sets / year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Machine Type | Full Servo Full Auto | Product Type | Napkin Packaging Machine |
|---|---|---|---|
| Maximum Diameter Of Packaging Film Roll | φ550mm | Length（mm） | 120-300 Mm |
| Width（mm） | 70-110mm | Height（mm） | 40-60 Mm |
| Rated Speed (P/min) | 30-60 Packs/min (depending On Product Characteristics) | Compressed Air Pressure (MPa) | 6kg/cm² 0.45m³/min |
| Equipment Dimensions (L X W X H)30-60 Packs/min (depending On Product Characteristics) | 5000*1000*2200 Mm | Net Weight | 3000kg |
| Total Power | Approximately 11kw | Machine Noise | ≤ 75dB(A) |
| Packaging Film Thickness | 0.05mm—0.07mm; | Packaging Film Material | PE Double-sided Heat-sealing Film (recommended), Various Heat-sealing Composite Films |
| Main Unit Heating Power | 3.0Kw | Packaging Pass Rate | ≥98% |
| Power Supply Type | 4P380V (3-phase 4-wire) | ||
| Highlight | 11kw sanitary napkin machine,11kw napkin packaging machine,4p380v sanitary napkin machine |
||
Product Description
11kw 4P380V Automatic Sanitary Napkin Packaging Machine BMZB 800W
BMZB 800W Fully Automatic Sanitary Napkin Packaging Machine designed for adult, kids, and pet hygiene products.
Key Features & Technical Specifications
- 9-axis Mitsubishi J4 series servo drive for fast response and precise movement
- Mitsubishi Q-series PLC and motion CPU control system with J4 high-resolution servo for stable high-speed operation
- Large LCD touchscreen display with easy parameter settings for quick specification changes
- Omron high-end temperature control system for bag making and sealing with ±1°C stability during high-speed operation
- German ROPEX intelligent temperature control and heating wire for final sealing with rapid heating/cooling capabilities
- Bag opening detection function prevents material feeding if opening is unsuccessful
- Incoming material detection function prevents bag removal if no material is present
- Automatic fan shutdown function after prolonged periods without material
- German automatic packaging film correction device
Customization & Service Advantages
Small-Batch Customization Expertise
MOQ starts from 1 unit, flexible adaptation to various product specifications including household paper and food packaging bags. Modular design enables quick adjustments to packaging speed, size, and materials.
Fast Delivery & Agile Response
Standardized components with localized supply chain ensure 15-35-day lead time. 24/7 technical support with on-site emergency service within 48 hours (priority for Asia, Africa, and Latin America).
Niche Market Specialization
20 years of expertise in household paper packaging, optimized for small-to-medium capacity. Continuous upgrades include auto-alignment systems and low-noise design (<65dB).
Cost-Optimized Solutions
30-40% more cost-effective than international brands with comparable performance, reducing ROI period to 6-12 months. Energy-efficient designs with servo motors reducing power consumption by 20%+.
Quality Control & Certifications
Rigorous quality control from raw material inspection to 72-hour continuous load testing. International certifications include CE and ISO9001, compliant with EU, Middle Eastern, and Southeast Asian standards.
