30-60 Packs/Min Automatic Sanitary Napkin Packing Machine 4P380V Power Supply Type BMTD800W
| Place of Origin | CH |
|---|---|
| Brand Name | BM |
| Certification | CE |
| Model Number | BMTD800W |
| Minimum Order Quantity | 1 |
| Price | US$30000.00 - 60,000.00 |
| Packaging Details | PE Bag / Bubble Wrap/Plastic Blister /Molded Foam/ Corrugated Box/ Wooden Crate/Pallet |
| Delivery Time | 20-30 working days |
| Payment Terms | T/T |
| Supply Ability | 500 sets / year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Machine Type | Full Servo Full Auto | Product Type | Napkin Packaging Machine |
|---|---|---|---|
| Length（mm） | 120-300 Mm | Width（mm） | 70-110mm |
| Height（mm） | 40-60 Mm | Rated Speed (P/min) | 30-60 Packs/min (depending On Product Characteristics) |
| Compressed Air Pressure (MPa) | 6kg/cm² 0.45m³/min | Equipment Dimensions (L X W X H)30-60 Packs/min (depending On Product Characteristics) | 5000*1000*2200 Mm |
| Total Power | Approximately 11kw | Machine Noise | ≤ 75dB(A) |
| Packaging Film Thickness | 0.05mm—0.07mm; | Packaging Film Material | PE Double-sided Heat-sealing Film (recommended), Various Heat-sealing Composite Films |
| Main Unit Heating Power | 3.0Kw | Packaging Pass Rate | ≥98% |
| Power Supply Type | 4P380V (3-phase 4-wire) | ||
| Highlight | sanitary napkin packing machine 4p380v,4p380v sanitary napkin sealing machine,60 packs/min sanitary napkin packing machine |
||
Product Description

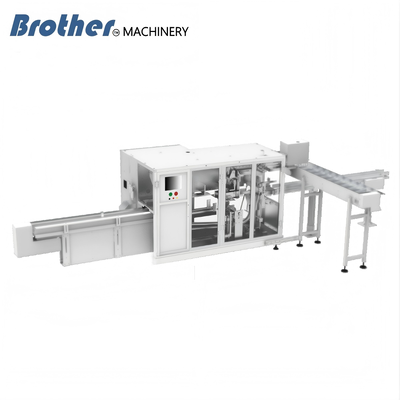

30-60 Packs/Min Automatic Sanitary Napkin Packing Machine 4P380V Power Supply Type BMTD800W
Product Overview
BMTD800W Fully Automatic Sanitary Napkin Packaging Machine delivers high-speed, precision packaging with advanced control systems and intelligent detection features.
Key Features
- 10-axis Mitsubishi J4 series servo drive for fast response and precise movement
- Mitsubishi Q series PLC and motion CPU control system for stable high-speed operation
- Large LCD touchscreen display with easy parameter settings for specification changes
- Bag opening detection function prevents material pushing if opening is unsuccessful
- Incoming material detection function prevents bag removal and automatically shuts off fan during no-material periods
Customization & Advantages
Small-Batch Customization
MOQ starts from 1 unit, flexibly adaptable to various product specifications including household paper and food packaging bags. Modular design enables quick adjustments to packaging speed, size, and materials.
Fast Delivery & Support
Standardized components with localized supply chain ensure 15-35-day lead time. 24/7 technical support with on-site emergency service within 48 hours (priority for Asia, Africa, and Latin America).
Niche Market Specialization
20 years of expertise in household paper packaging, optimized for small-to-medium capacity. Continuous upgrades include auto-alignment systems and low-noise design (<65dB).
Cost-Optimized Solutions
30-40% more cost-effective than international brands with comparable performance, reducing ROI period to 6-12 months. Energy-efficient designs with servo motors reducing power consumption by 20%+.
Quality Control & Certifications
Rigorous quality control from raw material inspection to 72-hour continuous load testing. International certifications include CE and ISO9001, compliant with EU, Middle Eastern, and Southeast Asian standards.
