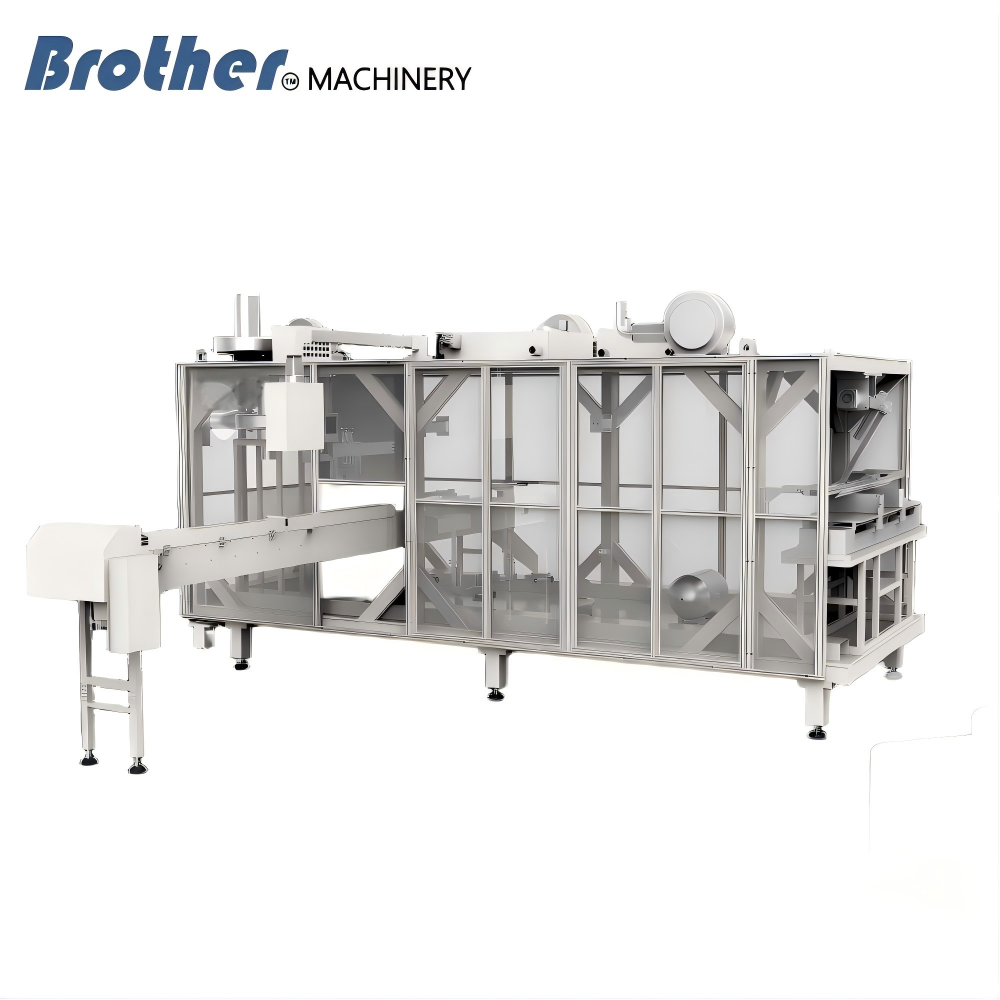

Fully Automatic Diaper Packaging Machine AC380V 30kw BMZN600
| Place of Origin | CH |
|---|---|
| Brand Name | BM |
| Certification | CE |
| Model Number | BMZN600 |
| Minimum Order Quantity | 1 |
| Price | US$30000.00 - 60,000.00 |
| Packaging Details | PE Bag / Bubble Wrap/Plastic Blister /Molded Foam/ Corrugated Box/ Wooden Crate/Pallet |
| Delivery Time | 20-30 working days |
| Payment Terms | T/T |
| Supply Ability | 500 sets / year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Machine Type | Full Servo Full Auto | Product Type | Diaper Packaging Machine |
|---|---|---|---|
| Length（mm） | 150-500mm | Width（mm） | 160-450mm |
| Height（mm） | 100-150mm | Rated Speed (P/min) | 30-35 Packs/min (depending On Product Characteristics) |
| Power Supply | AC380V,50H | Net Weight | 8000kg |
| Total Power | Approximately 30kw | Machine Noise | ≤ 85dB(A) |
| Packaging Film Material | European-style Prefabricated Bags With Double-sided Heat Sealing Function, Such As PE Bags | Leftover Packaging Bag Material After Sealing And Cutting Off 30-40mm Of Excess Material | After Sealing And Cutting Off 30-40mm Of Excess Material, It Is Automatically Sucked Into The Waste Film Bin |
| Pre-made Bag Inventory | Five Bag Storage Units Are Available For Cyclical Switching, With Three External Workstations Reserved For Manual Bag Hanging | ||
| Highlight | diaper packaging machine ac380v,ac380v napkin packaging machine,full servo diaper packaging machine |
||
Product Description
BMZN600 Fully Automatic Diaper Packaging Machine For All Kinds Of Diapers.
- The equipment features a compact structure and can be configured with side feeding to meet diverse customer production needs.
- It boasts a unique knife-sealing component, offering a simple, stable, reliable, and easy-to-maintain design.
- The equipment includes an automatic bag feeding mechanism that accurately places packaging bags at the appropriate opening position. Hangers are installed on the chain.
- Suitable for European-style bags, the equipment features five bag magazines operating in a cyclical manner. When no bag is available at the opening position, the chain automatically switches to another feeder. An alarm function is activated when a bag magazine is empty.
- In case of equipment malfunction and shutdown, material conveying automatically stops, facilitating troubleshooting by staff. The equipment's mechanical mechanism has overload protection and will shut down automatically. If an overload occurs, after manual reset of the overload mechanism, the button reset should automatically restore the servo control system to its original phase (slow return to the origin).
- The bag sealing section uses a knife seal with instantaneous heating and cutting; the temperature can be adjusted to achieve heat sealing for different types of bags.
- Each cylinder's operation can be set to manual or automatic via the touchscreen.
- All moving parts must have safety markings.
- Control wiring must use multi-core × 1.5mm² or larger cables, and signal wiring must use seamless multi-core × 0.75mm² or larger shielded cables. The operating panel is located on the operating side, at the same plane as the safety door. The electrical control cabinet is fixed to the main unit, with reasonable wiring for easy maintenance.
- Machine model changes should be completed within approximately 20-30 minutes.
CUSTOMIZATION
- Expert in Small-Batch Customization - MOQ starts from 1 unit, flexibly adaptable to various product specifications (household paper, food packaging bags, etc.). Modular design enables quick adjustments to packaging speed, size, and materials.
- Fast Delivery & Agile Response - Standardized components with localized supply chain ensure 15-35-day lead time. 24/7 technical support with on-site emergency service within 48 hours (priority for Asia, Africa, and Latin America).
- Specialization in Niche Markets - 20 years of expertise in household paper packaging, optimized for small-to-medium capacity. Continuous upgrades include auto-alignment systems and low-noise design (<65dB).
- Cost-Optimized Solutions - 30-40% more cost-effective than international brands with comparable performance, reducing ROI period to 6-12 months. Energy-efficient designs (servo motors reduce power consumption by 20%+).
- Quality Control & Certifications - Rigorous quality control from raw material inspection to 72-hour continuous load testing. International certifications include CE and ISO9001, compliant with EU, Middle Eastern, and Southeast Asian standards.
