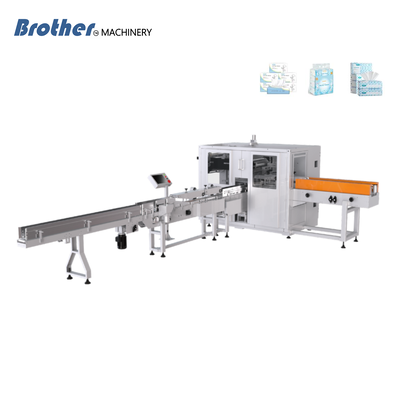

Fully Automatic Soft Draw Horizontal Packing Machine With 200 Bags/Min Performance
| Place of Origin | CH |
|---|---|
| Brand Name | BM |
| Certification | CE |
| Model Number | BMZB-300HR200 |
| Minimum Order Quantity | 1 |
| Price | US$18,000.00 - 35,000.00 |
| Packaging Details | PE Bag / Bubble Wrap/Plastic Blister /Molded Foam/ Corrugated Box/ Wooden Crate/Pallet |
| Delivery Time | 20-30 working days |
| Payment Terms | T/T |
| Supply Ability | 500 sets / year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Machine Type | Full Servo Full Auto | Product Type | Soft-draw Packaging Machine |
|---|---|---|---|
| Length（mm） | 100-200mm | Width（mm） | 85-105mm |
| Height（mm） | 15-60mm | Packaging Material | CPP(double-sidedheat-sealed Film |
| Packaging Film Thickness | 0.04mm | Packaging Film Core Diameter | 75-78mm |
| Rated Speed (P/min) | 15mmH/120bags/min,30mmH/200bags/min | Compressed Air Pressure (MPa) | 0.5-0.8 MPa (The Air Source And External Air Inlet Pipe Required For The Packaging Machine Are Provided By The Purchaser) |
| Packaging Film Maximum Outer Diamete | ￠450mm | Equipment Dimensions (L X W X H) | 6016×4242×1547 Mm |
| Power Supply | The Purchaser Is Responsible For Providing The Required External Power Cord):3-phase 380V 50Hz （3+N+P） | Net Weight | 3000kg |
| Total Power | 19.5kw | Machine Noise | ≤ 80dB |
| Highlight | soft draw horizontal packing machine,fully automatic horizontal packing machine,fully automatic horizontal packaging machine |
||
Product Description

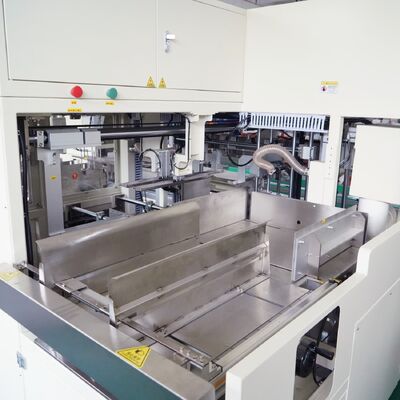

BMZB-300HR200 Fully Automatic Soft-Draw Packing System With 200 Bags/min Performance
Product Description
- The machine features a simple structure, with a brand-new open-type power and packaging system for easy adjustment and maintenance.
- The machine is compact, occupying a small footprint and facilitating layout, operation, and maintenance.
- The machine is sturdy, with minimal vibration during operation and stable packaging results.
- The film slitting and dotted line cutters utilize spring-loaded rotating blades powered by a servo motor. They stop operating when no material is present, extending the life of the cutters.
- The rear-flipping bale pressing mechanism allows for simple adjustment and stable, aesthetically pleasing packaging results.
- The box-type combined structure ensures high vibration and stability.
- The user-friendly interface automatically calculates the initial position after entering packaging parameters, and the settings can be saved, facilitating format changes and reducing changeover time.
- The three-dimensional packaging system, which combines wrapping, folding, and sealing, offers a compact and aesthetically pleasing structure, with excellent end-sealing and side-iron effects.
- Anti-empty packaging features include additional material handling units and auxiliary photoelectric tracking before feeding, preventing continuous and multiple packs, as well as overlong or undersized paper, thereby improving product packaging quality.
- The feed conveyor mechanism prevents unqualified tissues from passing through and preventing the film from being deposited, even for empty packs, minimizing packaging material consumption.
- An electronic handwheel replaces a mechanical one (an industry first), providing convenient and precise control.
- An alarm system for overlong and undersized paper prevents mechanical damage caused by paper overlength or undersize errors, and prevents packaging failures and waste of packaging film due to uneven paper lengths. This also reduces product scrap rates.
- A ribbon printer or thermal transfer printer is available (optional).
- A conveyor line can be used (customer-specified length or a mutually signed design drawing is available).
- Equipped with an automatic film tension adjustment device.
- Equipped with an out-of-paper automatic film feed stop function, meaning no product, no film; product present, film present.
- Proprietary center feed channel opening and closing mechanism.
- Optional custom-shaped tearing notch assembly.
- Optional remote diagnostic module, visual inspection module, and IoT module.
- The blade carriage features a dual-film pull mechanism for smoother film feed and improved packaging results.
- Expert in Small-Batch Customization - MOQ starts from 1 unit, flexibly adaptable to various product specifications (household paper, food packaging bags, etc.). Modular design enables quick adjustments to packaging speed, size, and materials.
- Fast Delivery & Agile Response - Standardized components with localized supply chain ensure 15-35-day lead time. 24/7 technical support with on-site emergency service within 48 hours (priority for Asia, Africa, and Latin America).
- Specialization in Niche Markets - 20 years of expertise in household paper packaging, optimized for small-to-medium capacity. Continuous upgrades include auto-alignment systems and low-noise design (<65dB).
- Cost-Optimized Solutions - 30-40% more cost-effective than international brands with comparable performance, reducing ROI period to 6-12 months. Energy-efficient designs (servo motors reduce power consumption by 20%+).
- Quality Control & Certifications - Rigorous quality control from raw material inspection to 72-hour continuous load testing. International certifications include CE and ISO9001, compliant with EU, Middle Eastern, and Southeast Asian standards.
Support and Services
Packing and Shipping
Frequently Asked Questions
Q1: Are you manufacturer or trading company?
We are a professional manufacturer based in Xiamen, China, with a strong foundation in mechanical engineering and precision manufacturing. Our founder brings 30 years of hands-on experience in mechanical technology.
Q2: How do I choose the right filling machine for my business?
Please provide: 1) Product packaging type, 2) Filling material, 3) Filling capacity, 4) Industry, 5) Filling speed, and 6) Budget. We will recommend the optimal filling machine for your requirements.
Q3: What product can your packing machine pack?
Our packaging machines handle powders, granules, liquids, and irregular products.
Q4: How far is your factory from the airport?
Our factory is 30 minutes from Xiamen Gaoqi International Airport. We provide pick-up service for visiting clients.
Q5: How about the after service and guarantee period?
12-month guarantee from machine arrival. Our professional team provides lifetime support to ensure optimal machine performance.
Q6: If I place an order now, how long until delivery?
Delivery time depends on order size and machine specifications. Our location in the industrial belt enables rapid customization and modification, ensuring timely delivery.
