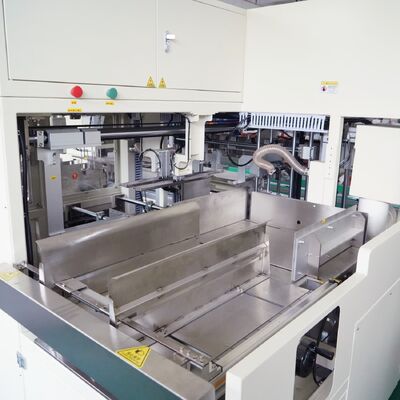

Servo Driven Soft Draw Horizontal Packaging Machine With Speed Of 220 Bags/Min BMZB-300HT220
| Place of Origin | CH |
|---|---|
| Brand Name | BM |
| Certification | CE |
| Model Number | BMZB-300HT220 |
| Minimum Order Quantity | 1 |
| Price | US$18,000.00 - 35,000.00 |
| Packaging Details | PE Bag / Bubble Wrap/Plastic Blister /Molded Foam/ Corrugated Box/ Wooden Crate/Pallet |
| Delivery Time | 20-30 working days |
| Payment Terms | T/T |
| Supply Ability | 500 sets / year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Machine Type | Full Servo Full Auto | Product Type | Soft-draw Packaging Machine |
|---|---|---|---|
| Length（mm） | 95-200mm | Width（mm） | 80-110mm |
| Height（mm） | 30-100mm | Packaging Material | CPP(double-sidedheat-sealed Film |
| Packaging Film Thickness | 0.04mm | Packaging Film Core Diameter | 75-78mm |
| Rated Speed (P/min) | 220bags/min | Compressed Air Pressure (MPa) | 0.5-0.8 MPa (The Air Source And External Air Inlet Pipe Required For The Packaging Machine Are Provided By The Purchaser) |
| Packaging Film Maximum Outer Diamete | ￠450mm | Equipment Dimensions (L X W X H) | 6153×3787×1761 Mm |
| Power Supply | The Purchaser Is Responsible For Providing The Required External Power Cord):3-phase 380V 50Hz （3+N+P） | Net Weight | 3200kg |
| Total Power | 23.5kw | Machine Noise | ≤ 80dB |
| Highlight | soft draw horizontal packaging machine,servo driven horizontal wrapping machine,servo driven horizontal packaging machine |
||
Product Description
BMZB-300HT220 Servo-Driven Soft Draw Horizontal Packaging Machine
High-speed fully automatic soft-draw packer with operational speed of 220 bags per minute, designed for optimal performance in industrial packaging applications.
Key Features & Technical Advantages
- Simple structure with open-type power and packaging system for easy adjustment and maintenance
- Compact design with minimal footprint for efficient space utilization
- Sturdy construction with minimal vibration and stable packaging results
- Servo motor-driven film slitting and dotted line cutters with automatic operation control
- Rear-flipping bale pressing mechanism for stable and aesthetically pleasing packaging
- Box-type combined structure ensuring high vibration resistance and stability
- User-friendly interface with automatic position calculation and parameter saving
- Three-dimensional packaging system combining wrapping, folding, and sealing
- Anti-empty packaging features with material handling units and photoelectric tracking
- Feed conveyor mechanism preventing unqualified products and minimizing material waste
- Electronic handwheel for precise control (industry first)
- Alarm system for paper size errors preventing mechanical damage
- Optional ribbon or thermal transfer printer available
- Automatic film tension adjustment device
- Out-of-paper automatic film feed stop function
- Proprietary center feed channel opening and closing mechanism
- Dual-film pull mechanism for smoother film feed and improved results
Customization Options
Small-Batch Customization: MOQ starts from 1 unit, adaptable to various product specifications including household paper and food packaging bags
Fast Delivery & Support: 15-35 day lead time with 24/7 technical support and 48-hour emergency service
Niche Market Specialization: 20 years expertise in household paper packaging with auto-alignment systems and low-noise design (<65dB)
Cost-Effective Solutions: 30-40% more cost-effective than international brands with 6-12 month ROI period
Quality Assurance: Rigorous quality control with CE and ISO9001 certifications compliant with international standards
Optional Accessories
- Custom-shaped tearing notch assembly
- Remote diagnostic module
- Visual inspection module
- IoT module
- Conveyor line (customer-specified length)
Support and Services
Packing and Shipping
Frequently Asked Questions
Are you manufacturer or trading company?
We are a professional manufacturer based in Xiamen, China, with a strong foundation in mechanical engineering and precision manufacturing. Our founder brings 30 years of hands-on experience in mechanical technology.
How do I choose the right filling machine for my business?
Please provide: 1) Product packaging type, 2) Filling material, 3) Filling capacity, 4) Industry, 5) Filling speed, and 6) Budget. We will recommend the optimal filling machine for your requirements.
What product can your packing machine pack?
Our packaging machines handle powders, granules, liquids, and irregular products.
How far is your factory from the airport?
Our factory is 30 minutes from Xiamen Gaoqi International Airport. We provide pick-up service for visiting clients.
How about the after service and guarantee period?
12-month guarantee from machine arrival. Our professional team provides lifetime support to ensure optimal machine performance.
If I place an order now, how long until delivery?
Delivery time depends on order size and machine specifications. Our location in the industrial belt enables rapid customization and modification, ensuring timely delivery.
