BMPV160 Automatic Vertical Packing Machine For Small Granular Products And Fine Powder Products .
| Place of Origin | CH |
|---|---|
| Brand Name | BM |
| Certification | CE |
| Model Number | BMPV160 |
| Minimum Order Quantity | 1 |
| Price | US$7300-9500 |
| Packaging Details | PE Bag / Bubble Wrap/Plastic Blister /Molded Foam/ Corrugated Box/ Wooden Crate/Pallet |
| Delivery Time | 20-30 working days |
| Payment Terms | T/T |
| Supply Ability | 500 sets / year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Machine Type | Fully Auto | Product Type | Vertical Packing Machine |
|---|---|---|---|
| Bag Size | W80-150mm/L80-210mm | Film Width | Max 320mm |
| Film Thickness | 0.05-0.10mm | Packing Speed | 10-80bags/min |
| Air Consumption | 0.65Mpa,0.3m/min | Voltage | 220V/380V50-60Hz |
| Overall Machine Weight | Approx. 380Kg | Dimension | 1350x930x1100mm |
| Power (W) | 3kw | ||
| Highlight | automatic vertical vacuum packing machine,granular vertical vacuum packing machine,granular automatic vertical packing machine |
||
Product Description

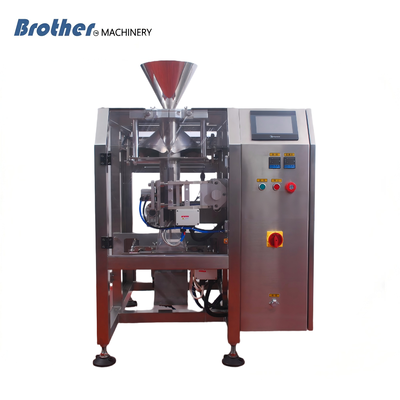

BMPV160 Automatic Vertical Packing Machine For Small Granular Products And Fine Powder Products
BMPV160 Automatic Vertical Packing Machine is designed for precise quantitative packing of small granular products and fine powder products with exceptional accuracy.
Product Applications
- Ideal for packing fine powder products requiring high weight accuracy including milk powder, protein powder, coffee powder, flour, drinking powder, spices powder, and similar materials
Functional Features
- PLC and HMI controller for easy operation and maintenance
- Servo film pulling system with photocell accuracy cutting position
- Separate circuit boxes for power control and pneumatic control ensuring low noise, excellent tightness, and stable operation
- Automatically completes product feeding, forming, filling, gas flushing (exhausting), sealing, cutting, date printing, and counting
- Optional devices include gusseted bag, linked bag, and punching device configurations
Customization Capabilities
Small-Batch Customization Expertise
Minimum order quantity starts from 1 unit with flexible adaptation to various product specifications including household paper and food packaging bags. Modular design enables quick adjustments to packaging speed, size, and materials.
Fast Delivery & Agile Response
Standardized components with localized supply chain ensure 15-35-day lead time. 24/7 technical support with on-site emergency service within 48 hours (priority for Asia, Africa, and Latin America).
Niche Market Specialization
20 years of expertise in household paper packaging, optimized for small-to-medium capacity. Continuous upgrades include auto-alignment systems and low-noise design (<65dB).
Cost-Optimized Solutions
30-40% more cost-effective than international brands with comparable performance, reducing ROI period to 6-12 months. Energy-efficient designs with servo motors reducing power consumption by 20%+.
Quality Control & Certifications
Rigorous quality control from raw material inspection to 72-hour continuous load testing. International certifications include CE and ISO9001, compliant with EU, Middle Eastern, and Southeast Asian standards.
