6-8 Times/Minute Full Auto Palletizing Robots 650kg Net Weight BM-WP40
| Place of Origin | CH |
|---|---|
| Brand Name | BM |
| Certification | CE |
| Model Number | BM-WP40 |
| Minimum Order Quantity | 1 |
| Price | US$10,000.00 - 30,000.00 |
| Packaging Details | PE Bag / Bubble Wrap/Plastic Blister /Molded Foam/ Corrugated Box/ Wooden Crate/Pallet |
| Delivery Time | 20-30 working days |
| Payment Terms | T/T |
| Supply Ability | 500 sets / year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Machine Type | Full Servo Full Auto | Product Type | Palletizing Robots |
|---|---|---|---|

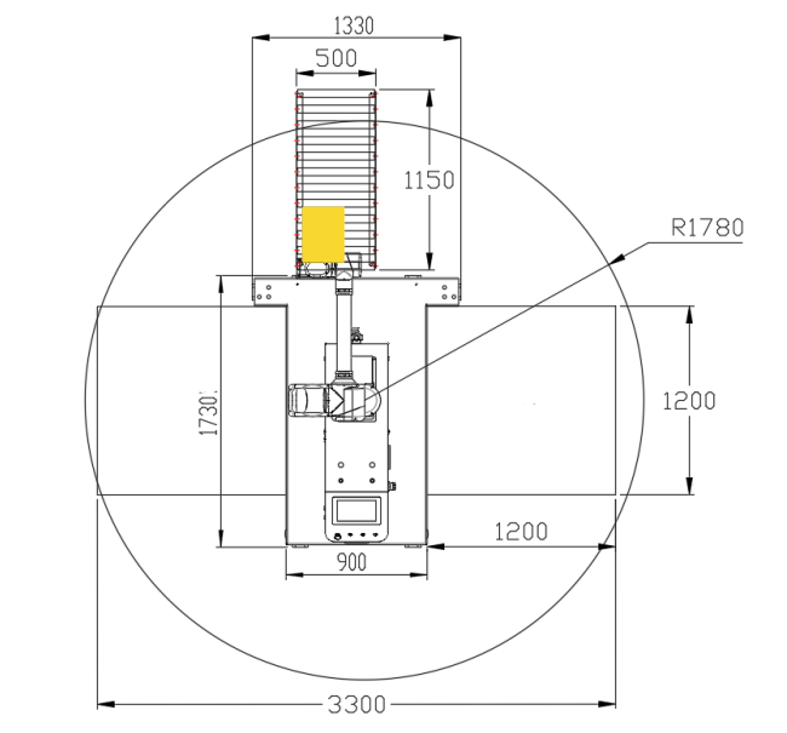

| Main Unit Dimensions | Approximately 3300mm*1730mm*3100mm (L×W×H, Including Pallet Position, After Lifting); Required Workshop Height: 2500mm + Lifting Height | Designed Arm Stretch | 1580mm/1780mm/1980mm |
| Logistics Wooden Crate Dimensions | 2150mm*1550mm*1900mm | Total Palletizing Power | 4KW |
| Designed Palletizing Speed | 6-8 Times/minute (depending On Product) | Pallet Placement Method | Manual, One On The Left And One On The Right |
| Robot Load Capacity | Maximum 50 Kg Including Suction Device | Palletizing Height | Maximum Palletizing Height 2500mm, Lifting Column 600mm |
| Power Supply | 220V±10%, 50Hz±5%, Control Voltage Is DC 24V | Pallet Dimensions | 1200*1200*150mm |
| Air Source | 0.5～0.7Mpa, Air Consumption: 200L/minute (purchaser To Provide Air Source) | Net Weight | 650kg |
| Machine Noise | ≤ 80dB | Main Unit Color | Silver Gray |
| Highlight | palletizing robots 650kg,full auto palletizing robots,650kg cartoning machine |
||
Product Description

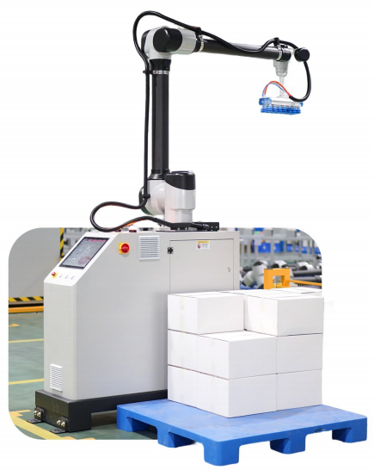

BM-WP40 Full Auto Palletizing Robot - 6-8 Cycles/Minute, 650kg Capacity
The BM-WP40 Palletizing Robot represents the next generation of industrial automation, designed for seamless integration in Industry 4.0 smart factory environments. This advanced system combines high-speed performance with intelligent operation to revolutionize your palletizing processes.
Key Features & Benefits
- High-speed operation: 6-8 palletizing cycles per minute
- Heavy payload capacity: 650kg net weight handling
- Compact, aesthetically pleasing design with easy-adjust features
- Intelligent touchscreen operation for simplified management
- Advanced safety sensors and autonomous learning capabilities
- Significant labor reduction and decreased worker intensity
- Flexible integration with automatic pallet feeders and conveyors
Automated Operation Process
The system utilizes automatic vacuum carton opening and packaging technology. Materials are manually fed to the conveyor and mechanically driven by chain systems, with automatic insert placement, feeding, glue spraying, and pressing operations.
Cartons are neatly stacked on support structures, where vacuum suction cups grip and position them onto guide rail surfaces. As the chain advances, support rods gradually fold carton surfaces while mechanical systems press inserts into place. Hot melt adhesive application and solidification complete the packaging process.
Customization Capabilities
Small-Batch Customization Expertise
MOQ starting from 1 unit with flexible adaptation to various product specifications including household paper and food packaging bags. Modular design enables quick adjustments to packaging speed, size, and materials.
MOQ starting from 1 unit with flexible adaptation to various product specifications including household paper and food packaging bags. Modular design enables quick adjustments to packaging speed, size, and materials.
Rapid Delivery & Support
Standardized components with localized supply chain ensure 15-35 day lead times. 24/7 technical support with on-site emergency service within 48 hours (priority for Asia, Africa, and Latin America).
Standardized components with localized supply chain ensure 15-35 day lead times. 24/7 technical support with on-site emergency service within 48 hours (priority for Asia, Africa, and Latin America).
Niche Market Specialization
20 years of expertise in household paper packaging, optimized for small-to-medium capacity requirements. Continuous upgrades include auto-alignment systems and low-noise design (<65dB).
20 years of expertise in household paper packaging, optimized for small-to-medium capacity requirements. Continuous upgrades include auto-alignment systems and low-noise design (<65dB).
Cost-Effective Solutions
30-40% more cost-effective than international brands with comparable performance, reducing ROI period to 6-12 months. Energy-efficient designs with servo motors reducing power consumption by 20%+.
30-40% more cost-effective than international brands with comparable performance, reducing ROI period to 6-12 months. Energy-efficient designs with servo motors reducing power consumption by 20%+.
Quality Assurance
Rigorous quality control from raw material inspection to 72-hour continuous load testing. International certifications include CE and ISO9001, compliant with EU, Middle Eastern, and Southeast Asian standards.
Rigorous quality control from raw material inspection to 72-hour continuous load testing. International certifications include CE and ISO9001, compliant with EU, Middle Eastern, and Southeast Asian standards.
Industry Applications
Widely utilized across multiple industries including cardboard boxes, pharmaceuticals, daily necessities, food and beverages, cosmetics, and metal products palletizing processes.
